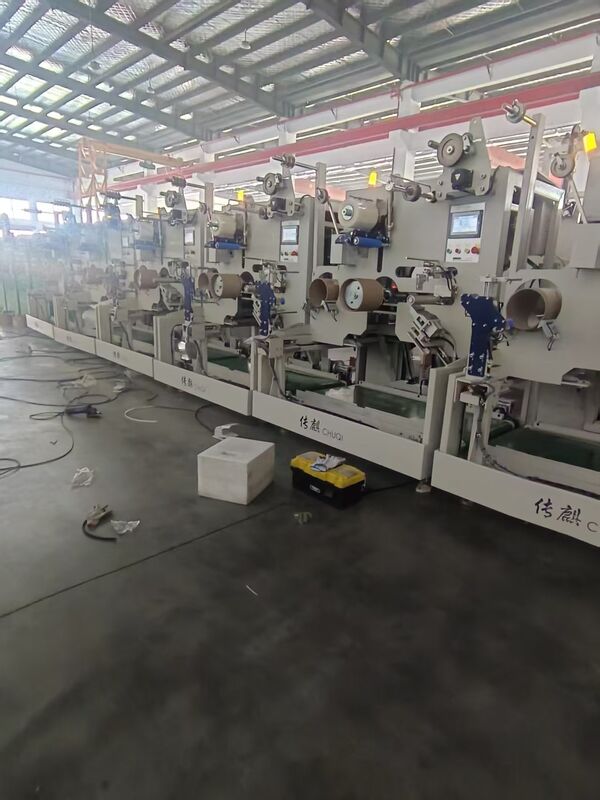

The Integrated Automation Solution for PP Strap Coiling

The Integrated Automation Solution for PP Strap Coiling
The Integrated Automation Solution for PP Strap Coiling

Large Image :  The Integrated Automation Solution for PP Strap Coiling

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQA519PF
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 1000SETS
Contact Now

The Integrated Automation Solution for PP Strap Coiling

Description
Automation Level: Fully Automatic Cycle Core Functions: Auto Tube Change, Cut & Film Wrap
Discharge Method: 90° Flip Onto Conveyor Operator Interface: Color Touch Screen
Drive System: Servo Motors (Winding/Traversing) Production Mode: Continuous Unattended Operation
Highlight:

PP strap coiling automation solution

,

PP strap winder with automation

,

automated PP strap coiling machine

PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine
Complete Automated Production Solution
This integrated automation system creates a fully automated closed-loop process from winding to finished product output, significantly reducing labor requirements while ensuring consistent quality through precise program control.
Core Automation Features
  • Automated winding, tube changing, strap cutting, head clamping, and film wrapping
  • 90-degree flipping discharge onto conveyor system
  • Simple touch screen setup for continuous intelligent production
  • Servo motor-driven traversing guidance for PP strapping widths 5-19mm
  • Automatic paper core (mandrel) requirement with outer-layer film wrapping
  • Servo gear motor-driven winding shaft with adjustable tension control
  • Dual measurement modes: by length (meter) and by weight
Technical Specifications
Category Parameter Specification
Automation Features Automatic Tube Change Supported
Automatic Strap Cutting & Head Clamping Supported
Automatic Outer-Layer Film Wrapping Supported
Automatic Flipping Discharge 90° onto conveyor
Operator Interface Touch Screen
Core Drive Main Winding Motor Servo Motor, 1.5KW
Traversing Guidance Motor Servo Motor, 0.4KW
Conveyor Belt Motor Horizontal Gear Motor, 0.4KW
Control & Sensing PLC System XINJE
Sensors AUTONICS
Pneumatic Components AIRTAC / DONGHAO
Frequently Asked Questions
How much labor can this "Integrated Automation" solution save me?
Traditional winding requires manual operation for tube changing, strap cutting, and handling. Our equipment automates all these processes, typically reducing operator requirements to just one person for supervision and paper tube replenishment, resulting in significant labor cost savings.
What if an error occurs in the automated process? Will the machine alarm?
The machine features a comprehensive sensor detection system (proximity switches, photoelectric sensors) and PLC logic control. If issues such as missing paper tubes, strap breakage, or insufficient air pressure occur, the machine immediately displays clear fault alarm messages on the touch screen and stops operation for quick troubleshooting.
