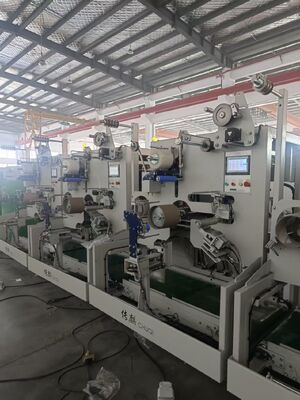

Large Image :  Built for Reliability: The Heavy-Duty Automatic Winding Workhorse

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQA519PF
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 1000SETS
Contact Now

Built for Reliability: The Heavy-Duty Automatic Winding Workhorse

Description
Main Structure: Thick-Plate Welded Frame Motor Brand: XINJE (Wuxi)
Pneumatic Brand: AIRTAC / DONGHAO Sensor Brand: AUTONICS
Surface Treatment: Spray/Chrome/Black Oxide Design Philosophy: High Stability & Low Failure Rate
Highlight:

heavy-duty automatic PP strap winder

,

reliable automatic strap winding machine

,

industrial PP strap winder with warranty

Built for Reliability: The Heavy-Duty Automatic Winding Workhorse
PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine
Product Introduction
In demanding industrial environments, stability and durability are paramount equipment values. This winding machine embodies this philosophy, engineered inside and out for reliable operation. Its frame is constructed from 8mm thick steel plates and heavy-duty rectangular tubes, welded to create a robust structure capable of withstanding vibrations and loads during long-term continuous operation.
Core components are carefully selected from renowned industry brands: servo motors and PLCs from Wuxi Xinje, pneumatic components from Taiwan AIRTAC, and sensors from Korea AUTONICS, ensuring stable performance from the source. The surface undergoes multiple treatments including high-temperature spray painting and chrome plating for corrosion and wear resistance. This is a "workhorse" designed for 24/7 continuous production, engineered to minimize downtime and provide long-term production security.
Main Functions
  • Uses servo motor for traversing guidance, winding PP strapping bands from 5 to 19 mm wide with width selection via touch screen interface
  • Requires paper core (mandrel) with automatic outer-layer film wrapping and complete automated cycle including automatic stop, paper tube replacement, strapping band cutting, band head securing, film wrapping, 90-degree coil flipping onto conveyor, and return to origin
  • Servo gear motor-driven winding shaft with tension arm angle position control for speed regulation and spring screw tension adjustment for different band weights and widths
  • Automatic movement of discharged strapping band onto conveyor after winding completion
  • Dual measurement modes: by length (meter) and by weight
Technical Specifications
Category Parameter Specification
Structure Frame Main Material 8mm Steel Plate, 80×40 Rectangular Tube
Construction Welded Structure
Key Component Brands Motors & Control System XINJE, Wuxi
Pneumatic System AIRTAC Taiwan, DONGHAO Wenzhou
Sensors AUTONICS, Korea
Surface Treatment Processes High-Temperature Spray Painting, Chrome Plating, Black Oxide Coating
Purpose Anti-rust, Wear-resistant, Corrosion-resistant
Design Objective Key Metrics High Stability, Low Failure Rate, Long Service Life
Frequently Asked Questions
Q1: The equipment looks very sturdy, but how long can it run continuously without stopping?
This equipment is specifically designed for continuous production. With stable power and air supply, plus regular daily maintenance (air filter draining and lubrication), the machine can handle 24/7 continuous operation for multiple days per week. The robust structure and high-quality components provide the foundation for this endurance.
Q2: With these famous brand components, will subsequent maintenance and replacement costs be very high?
On the contrary. While standard components from reputable brands may involve slightly higher initial costs, their reliability significantly reduces losses from unexpected downtime. These brands have ample supply and mature domestic market channels, making parts easier to obtain with transparent pricing. In the long run, the total cost of ownership is lower.
