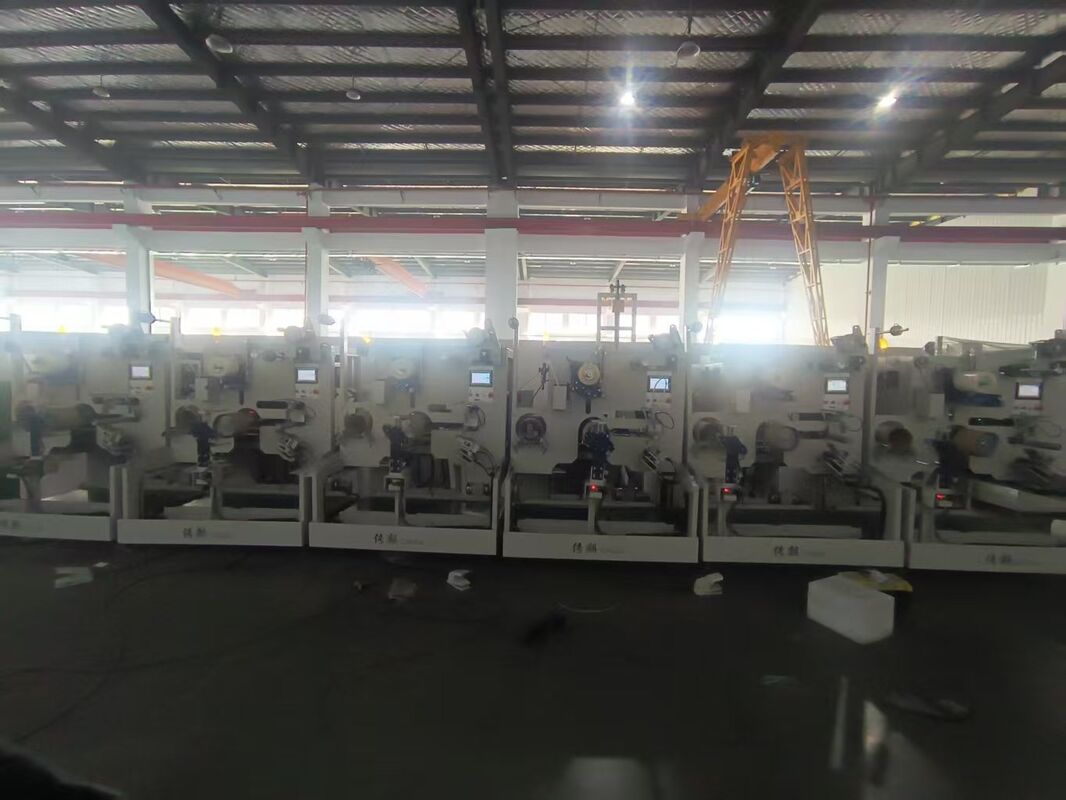

Smart, Adaptive, and Efficient: The Fully Automatic Winding System

Smart, Adaptive, and Efficient: The Fully Automatic Winding System
Smart, Adaptive, and Efficient: The Fully Automatic Winding System

Large Image :  Smart, Adaptive, and Efficient: The Fully Automatic Winding System

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQA519PF
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 1000SETS
Contact Now

Smart, Adaptive, and Efficient: The Fully Automatic Winding System

Description
HMI: Graphical Touch Screen Parameter Setting: One-touch Changeover
Measurement Modes: By Length / By Weight Tube Compatibility: 152mm / 190mm Length
Width Adjustment: Digital Setting Via Touch Screen Production Adaptability: Supports Multi-variety, Small-batch
Highlight:

fully automatic PP strap winder

,

smart adaptive strap winder

,

efficient automatic winding system

PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine
This intelligent winding system is engineered for flexible production environments. It functions as an easily managed and adjustable production unit, featuring a user-friendly touch screen interface for seamless task switching between 5mm or 19mm strap widths and 152mm or 190mm tube lengths. The equipment supports both "by length" and "by weight" measurement modes to accommodate diverse order requirements. An adaptive tension control system intelligently matches material characteristics, ensuring rapid and stable production after specification changes.
Main Functions
  • Servo motor traversing guidance system for winding PP strapping bands with widths from 5 to 19 mm
  • Touch screen selection for strap width configuration
  • Automatic paper core (mandrel) handling with outer-layer film wrapping
  • Complete automated cycle: automatic stop, paper tube replacement, strap cutting, band head clamping, film wrapping, 90-degree coil flipping onto conveyor, and return to origin
  • Servo gear motor-driven winding shaft with tension arm angle position control
  • Adjustable tension via spring screw for optimal winding of different strap weights and widths
  • Automatic conveyor discharge of completed strapping bands
  • Dual measurement modes: by length (meter) and by weight
Technical Specifications
Category Parameter Specification
Smart Control Control Core PLC (Programmable Logic Controller)
HMI (Human-Machine Interface) Color Touch Screen
Parameter Setting Strap width, coil length/weight, etc.
Adaptability Adjustable Strap Width Range 5 - 19 mm (Selectable via touch screen)
Compatible Paper Tube Length 152 mm / 190 mm
Measurement Modes By Length / By Weight
Efficiency Automation Level Fully Automatic Cycle
Reduced Downtime Quick changeover, automatic operation
Frequently Asked Questions
Is it complicated to switch production to straps of different widths? How long does it take?
The operation is very simple, primarily involving selecting the new "strap width" parameter on the touch screen, a process that takes only seconds. The machine's servo traversing system will automatically adjust its stroke. If the paper tube specification remains the same, the new task can be started immediately, enabling quick changeover.
How should I choose between "By Length" and "By Weight" mode?
This depends on your production and customer requirements. "By Length" mode is suitable for sales by length or when there are strict requirements on coil length. "By Weight" mode is suitable for sales by weight, or when the strap weight per meter has slight variations, ensuring constant weight per coil. Our equipment can be flexibly configured according to your needs.
