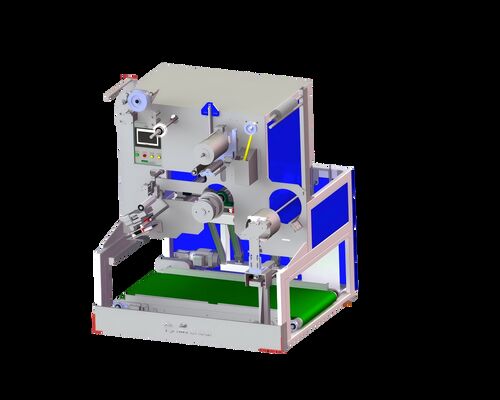

PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine

PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine

 Main Functions

1) Uses a servo motor for traversing guidance. Winds PP strapping bands with widths from 5 to 19 mm. Select the corresponding strap width on the touch screen for winding.

2) Requires a paper core (mandrel) and features automatic outer-layer film wrapping. After winding is completed, the machine stops automatically, replaces the paper tube, cuts the strapping band, clamps and secures the band head, wraps the outer layer with film, flips the finished coil 90 degrees onto the conveyor belt, returns to the origin, and continues the automatic winding process. The entire cycle is completed automatically.

3) The winding shaft is driven by a servo gear motor. The winding speed is regulated by controlling the angle position of the tension arm. Tension can be adjusted via the spring screw, allowing appropriate winding tension for strapping bands of different weights or widths, minimizing curvature deformation after winding.

4) After winding is complete, the discharged strapping band is automatically moved onto the conveyor.

5) Measurement modes: Two modes available: by length (meter) and by weight.
