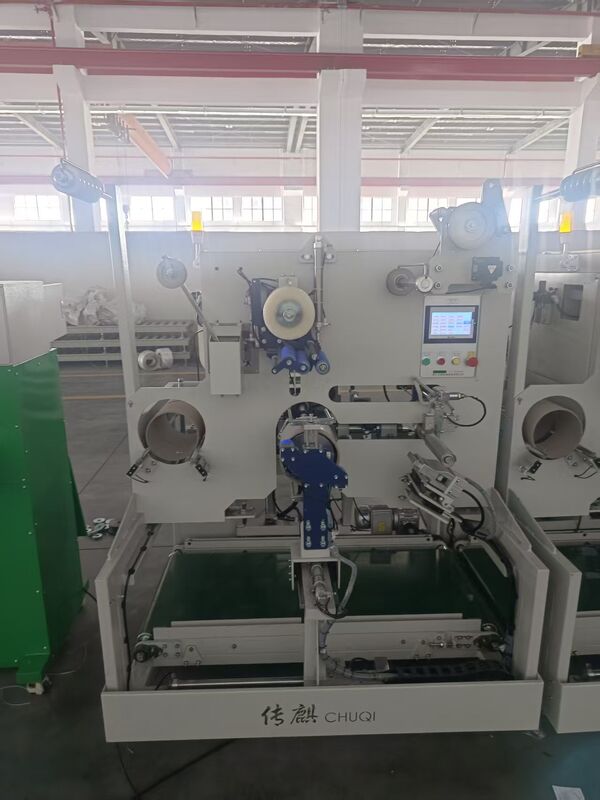

Precision-Coiled Perfection: The Servo-Driven Winding Machine

Precision-Coiled Perfection: The Servo-Driven Winding Machine
Precision-Coiled Perfection: The Servo-Driven Winding Machine

Large Image :  Precision-Coiled Perfection: The Servo-Driven Winding Machine

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQA519PF
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 1000SETS
Contact Now

Precision-Coiled Perfection: The Servo-Driven Winding Machine

Description
Traversing Drive: Servo Motor Winding Drive: Servo Gear Motor
Tension Control: Angle Feedback + Spring Adjustment Strap Width Range: 5-19mm
Traversing Accuracy: ±0.5mm Primary Objective: Minimize Curvature Deformation
Highlight:

servo-driven PP strap winder

,

precision-coiled strap winding machine

,

automatic PP strap winder

Precision-Coiled Perfection: The Servo-Driven Winding Machine
PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine
Product Introduction

Our machine design centers on achieving perfect winding quality through advanced servo technology. This fully servo-driven system (for both winding and traversing shafts) eliminates errors from traditional mechanical transmission, delivering millimeter-precise traversing and constant tension control. A unique tension arm angle feedback system with adjustable spring mechanism enables real-time fine-tuning of winding speed and tension, actively adapting to straps of varying weights and widths. This precision engineering minimizes "curvature deformation" and "bridging" after winding, ensuring every coil is tight, flat, and visually uniform for near-perfect winding results.

Main Functions
  • Servo motor traversing guidance for PP strapping bands (5-19 mm width) with touch screen width selection
  • Automatic paper core (mandrel) operation with outer-layer film wrapping and complete automated cycle
  • Servo gear motor winding shaft with tension arm angle position control and adjustable spring tension
  • Automatic conveyor discharge of completed coils
  • Dual measurement modes: by length (meter) and by weight
Technical Specifications
Drive System
Winding Drive Servo Gear Motor
Traversing Drive Servo Motor
Control Mode Closed-loop Position/Speed Control
Tension Control
Control Method Tension Arm Angle Feedback
Adjustment Mechanism Adjustable Spring Screw
Purpose Adapt to different weights/widths
Precision Specifications
Traversing Accuracy ±0.5mm (Servo-controlled)
Winding Speed Stability High (Servo speed regulation)
Material Compatibility
Strap Width 5 - 19 mm
Strap Type PP Strapping
Frequently Asked Questions
What are the advantages of servo drives over ordinary motors? How does it specifically improve my product quality?
Servo motors provide fast response, precise control, and smooth operation. In winding applications, they enable accurate traversing to prevent edge overlap or uneven gaps, allow for softer starts/stops and speed changes to reduce strap impact, and combined with tension control, effectively minimize issues like "tight inner layers and loose outer layers" or deformation from tension fluctuations. This directly enhances coil appearance and unwinding smoothness in subsequent use.
How do I adjust the machine to handle different strap specifications?
Adjustments are intuitive and straightforward. First, select the corresponding strap width parameter on the touch screen. For straps of different weights (thicknesses), manually rotate the "spring adjustment screw" to change the preset pressure on the tension arm, finding the optimal winding tension. The servo system automatically optimizes its operating parameters for consistent performance.
