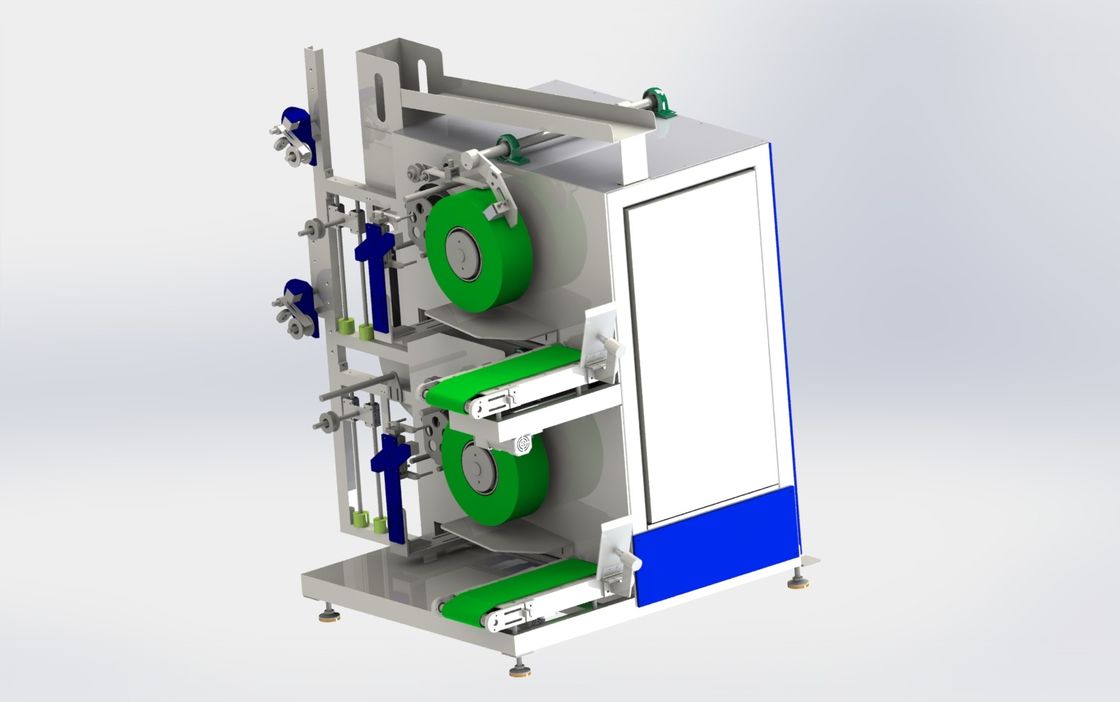

Automated PP Strap Winder CAQ819PD

Double floor PP Polypropylene strapping automatic winder (One winder can rewind 2 PP straps at the same time.)

  The strap winder of the CQA819PD was used for winding straps in parallel directly from the extruder.

  The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind pp straps with width of 8~19mm depending on configuration.

  Once a winding package has reached the desired circumference, it is removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

  The machines were developed for continous operation. The compact design permits use even in confined spaces.

Technical details

Facts and advantages

1. One winder can rewind 2 PP straps at the same time.
2. Fully automatic pp strap winder for straps from 8 to 19 mm, with an outer package diameter of 500 mm
3. Conveyor system for automatic transport

Basic equipment

1. Dancer control for controlling of a constant strap tension and winding speed
2. Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps
3. Pneumatic mandrels for fast bobbin change
4. Sleeve magazine
5. Bobbin deposit
6. Two measurement modes: weight and meter
