Product Details:
|
| Application: | Polypropylene PP Strap | Characterization: | Fully Automatic |
|---|---|---|---|
| Configure: | Standard Or Customized | Control: | Dancer Control With PLC |
| Motor: | Dual Servo Motor | Power Supply: | 220V/50Hz |
| Strap Core Diameter: | 200mm | Width: | 5mm-19mm |
| Highlight: | PP Strap Automatic Winder,Polypropylene Strapping Band Making Machine,300 M/Min Automatic Strap Winder |
||

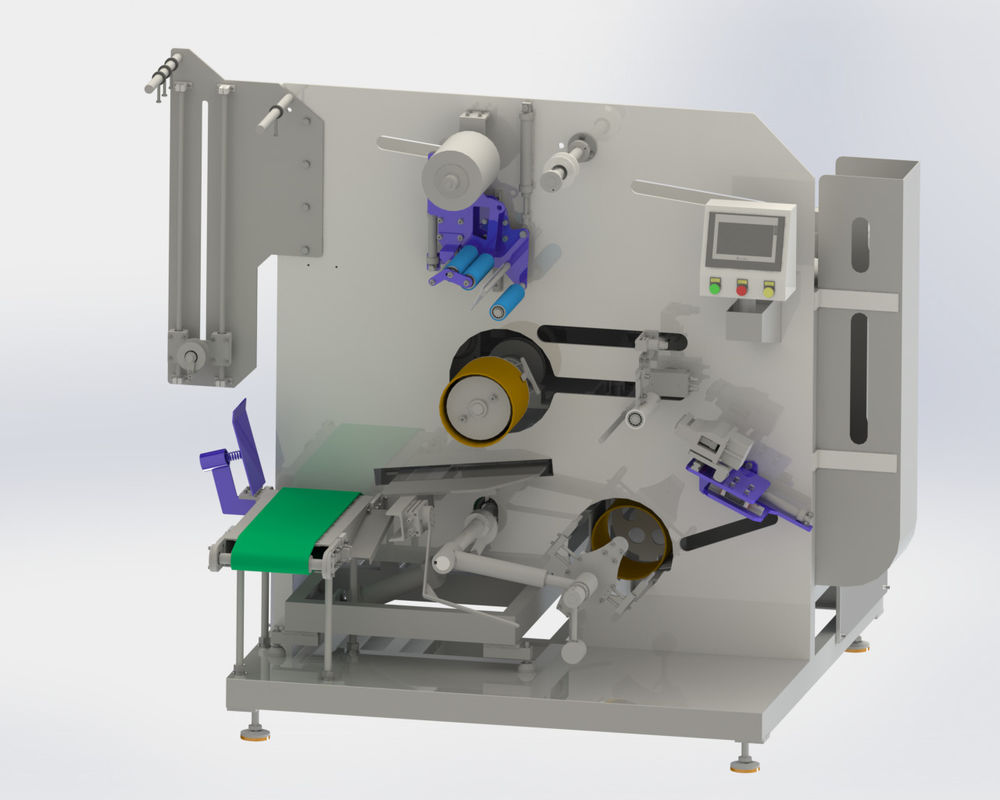

Polypropylene PP strap automatic winder
Abstract
The Polypropylene PP strap automatic winder of the CQA519P was used for winding straps in parallel directly from the extruder.The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind Polypropylene PP strap with width of 5~19mm depending on configuration.
Once a winding package has reached the desired circumference, it is wrapped with film by the intergrated winder and removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.
The machines were developed for continous operation. The compact design permits use even in confined spaces.
Technical details
| Model | CQA519P |
| Winding speed | 50 – 300 m/min |
| Maximum pick up speed | 350 m/min |
| Maximum mandrel rotation speed | 500 m/min |
| Strap width | 5~19mm |
| Traverse length | 50~200mm |
| Mandrel diameter | 203mm |
| Maximum package diameter | 500 mm |
Facts and advantages
Basic equipment
FAQ
Q1: Minimum inside and Max outside diameter of the roll?
A1: Min inner normal 203mm or customized Max outer dia. 500mm
Q2: Developed and manufactured in-house?
A2: Yes, We have our own R&D and manufacturing, with patents and drawings for all parts and circuits.
Q3: Maturity of equipment?
A3: Developed and marketed for more than 6 years, and already export to Japan Italy.
Q4: Warranty period?
A4: 1 Year Warranty
