Custom Closed-Loop Control pet strap production line For Flawless PET Production

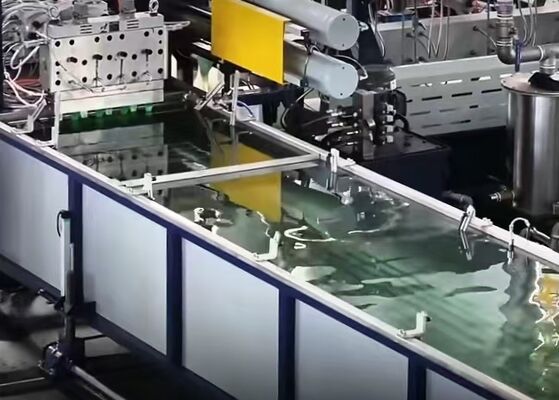

Large Image : Custom Closed-Loop Control pet strap production line For Flawless PET Production

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DASY
Payment Terms:	T/T
Supply Ability:	100SETS

Contact Now

Custom Closed-Loop Control pet strap production line For Flawless PET Production

Description

Control Type:	Full Closed-Loop Feedback	Controlled Parameters:	Temperature/Tension/Speed
Stability:	Extremely High	Response Speed:	Millisecond Level
Quality Assurance:	Real-Time Error Correction	Anti-Interference Capability:	Strong
System Composition:	Sensor + Controller + Actuator
Highlight:	closed-loop PET strap production line , Custom pet strap production line , Flawless PET strap production line

Closed-Loop Control for Flawless PET Production

Stability is essential for high-quality continuous production. Our production line implements closed-loop control systems at all critical process points, enabling real-time monitoring and instant adjustments. From drying temperature and extrusion zone temperatures to stretch roll speeds and winding tension, sensor signals are continuously fed back to controllers and compared with setpoints to dynamically adjust actuators. This real-time error-correction mechanism effectively counters external disturbances, ensuring process parameters remain within optimal ranges to guarantee consistent product thickness, width, strength, and significantly reduce scrap rates.

Key Features

Control Principle: Full closed-loop automatic feedback control on key quality variables, minimizing manual intervention and parameter drift
Temperature Closed-Loop: All heating zones utilize PID closed-loop control with robust anti-interference capability
Tension Closed-Loop: Tension sensors at stretching, haul-off, and winding stages with servo motors or magnetic powder clutches for real-time adjustment
Speed Synchronization: All drive points synchronized via master speed chain or bus system with precise, adjustable ratios
Thickness Control (Optional): Integration with online thickness gauge for Automatic Thickness Control (ATC)

Technical Specifications

Parameter Category	Parameter Item	Specification / Description
Temperature Control	Control Method	PID Closed-Loop with Auto-tuning
	Control Accuracy	±1.0 °C (heating zones)
	Response Time	Correction to disturbance < 2 seconds
Tension Control	Control Stages	Stretching, Haul-off, Winding
	Sensor Type	Tension Dancer or Load Cell
	Control Accuracy	±1% FS (Full Scale)
Speed Synchronization	Synchronization Method	Electronic Gearing/Camming (Bus-based)
Optional Configuration	Automatic Thickness Control	Closed-loop based on beta-ray or infrared gauge

Frequently Asked Questions

What's the difference between closed-loop and open-loop control in actual production?

Open-loop control is similar to setting a stove's flame and leaving it, where ambient changes might cause heating fluctuations. Closed-loop control functions like an intelligent oven with a thermostat, constantly monitoring internal temperature and automatically adjusting heat to maintain the set point. In production, closed-loop automatically compensates for disturbances like voltage fluctuations, ambient temperature changes, and minor raw material variations, whereas open-loop requires frequent manual checks and adjustments and cannot achieve the same level of stability.

Why is tension closed-loop so important?

Constant tension is crucial for preventing product deformation, breakage, wrinkles, or uneven tightness during PET stretching, haul-off, and winding. Tension fluctuations can cause unstable draw ratios affecting strength uniformity, haul-off slippage causing thickness variations, and poor winding patterns like "telescoping" or "ribbon" winding. A tension closed-loop system instantly responds to and corrects any tension change, making it essential technology for achieving neat roll formation and excellent product appearance.
