Biaxial Brilliance High-Strength PET Strapping Line High Efficiency

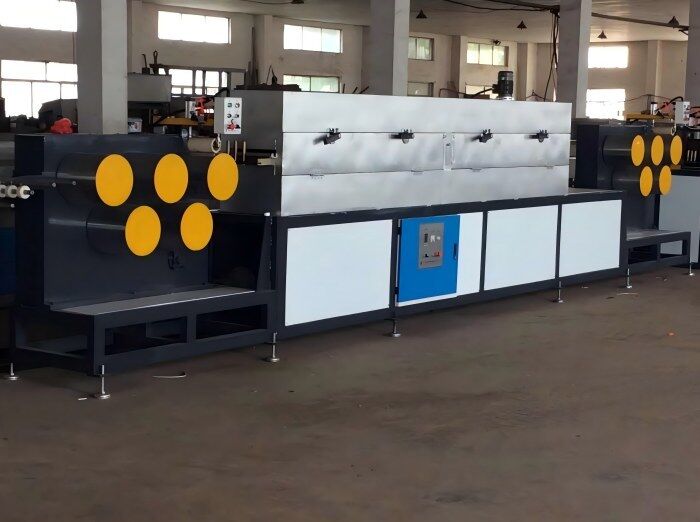

Large Image : Biaxial Brilliance High-Strength PET Strapping Line High Efficiency

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden box
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	100sets

Contact Now

Biaxial Brilliance High-Strength PET Strapping Line High Efficiency

Description

Strengthening Process:	Sequential Biaxial Stretching	MD Draw Ratio Range:	3.0-8.0 Times
TD Draw Ratio Range:	2.0-5.0 Times	Key Equipment:	Multi-Roll MD Stretcher + Rail Tenter Frame
Performance Outcome:	High Strength (≥600MPa)	Product Feature:	Low Elongation, Dimensionally Stable
Highlight:	high-strength PET strapping line , biaxial PET strap winder , durable PET strapping machine

Biaxial Brilliance: High-Strength PET Strapping Line

Advanced Biaxial Stretching Technology

Our high-strength PET strapping production line utilizes advanced biaxial stretching technology to achieve exceptional material performance. Through precise molecular orientation in both machine direction (MD) and transverse direction (TD), we transform PET material into high-performance strapping with tensile strength exceeding 600 MPa, excellent flexibility, and minimal rebound.

Core Process Features

Sequential Biaxial Stretching: MD stretching followed by TD stretching for optimal molecular alignment and crystallinity
Machine Direction System: Multi-roller preheating with precise ratio stretching above glass transition temperature
Transverse Direction System: Rail-type tenter frame with adjustable width and heat-setting zone
Synchronization Control: Speed interlock between MD and TD systems ensures smooth tension transition
Process Flexibility: Independent adjustment of MD and TD draw ratios for customized product specifications

Technical Specifications

Parameter Category	Parameter Item	Specification / Description
Machine Direction Stretch	Number of Stretch Rolls	8-12 rolls (preheat, stretch, set)
	MD Draw Ratio Range	3.0 - 8.0 times (adjustable)
	Preheat Roll Temperature Control	Zoned, up to 120°C
Transverse Direction Stretch	Stretching Method	Rail & Clip Type Tenter Frame
	TD Draw Ratio Range	2.0 - 5.0 times (adjustable)
	Heating Method	Infrared Tubes or Hot Air Circulation
Product Performance	Final Product Tensile Strength	≥ 600 MPa (depends on material & process)
Product Characteristics	Product Features	High stiffness, low elongation, dimensionally stable

Frequently Asked Questions

How to choose the biaxial draw ratios? What is their impact on the final product?

Draw ratio is the key process parameter determining product strength. Higher draw ratios result in greater molecular orientation and increased longitudinal tensile strength, though transverse strength may be relatively lower. Products become thinner and stiffer with higher ratios. Our production line offers wide adjustability and includes process guidance to help optimize parameters based on your specific thickness, width, and performance requirements.

Breakage or uneven thickness often occurs during stretching. How is this resolved?

Breakage typically relates to material quality issues (moisture, impurities), uneven preheating, or improper draw ratio settings. Our system prevents these issues through proper material drying, uniform temperature control, and smooth tension transition. Uneven thickness primarily stems from initial extruded sheet inconsistencies, which our integrated system addresses through precise extrusion and die control from source to final process.
