Integrated Solution Pet Strap Extrusion Line From Drying To Winding

Integrated Solution Pet Strap Extrusion Line From Drying To Winding
Integrated Solution Pet Strap Extrusion Line From Drying To Winding

Large Image :  Integrated Solution Pet Strap Extrusion Line From Drying To Winding

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 100SETS
Contact Now

Integrated Solution Pet Strap Extrusion Line From Drying To Winding

Description
Integration Level: Full-Line Integration Control Method: Centralized PLC
Operator Interface: Single Touch Screen Process Flow: Drying To Winding
Design Goal: Turnkey Project Synergy: Seamless Linkage
User Experience: Low Operational Complexity
Highlight:

PET strap drying winding system

,

integrated PET strap production line

,

PET strap manufacturing equipment

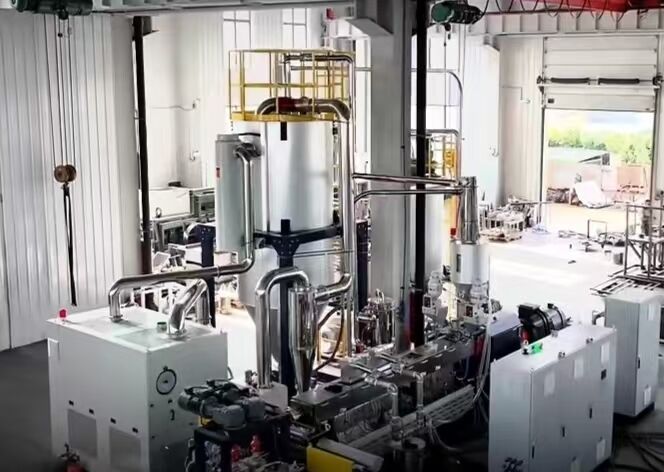

The Integrated PET Solution: From Drying to Winding
Product Introduction
This integrated PET production line solution provides seamless connectivity from raw material pretreatment to finished product winding. Rather than a simple equipment assembly, it represents a synergistic system where key processes—PET drying, extrusion, stretching, heat-setting, cooling, and winding—are unified under a single control system. This integrated design eliminates process bottlenecks while maximizing production efficiency and stability. The turnkey solution is ideal for customers seeking high output with minimal operational complexity.
Main Specifications
  • Core Design Philosophy: Integrated line-wide design and control for continuous, automated production from pellet to coil
  • Process Flow: Material Drying → Melting & Extrusion → Sheet Forming → Biaxial Stretching → Heat Setting → Cooling → (Embossing) → Hauling & Winding
  • Control Core: Centralized PLC control system coordinating operating parameters and start/stop sequences for the entire line
  • HMI: Large touch screen as the sole master control interface for monitoring full-line status and centralized parameter setting
  • Capacity Assurance: Optimized unit cycle times and buffer design ensure stable, continuous operation at designed maximum speed
Technical Parameters
Parameter Category Parameter Item Specification / Description
Line Composition Included Units Drying System, Extruder, Die, Cooling Rolls, Stretching Machine, Heat-Setting Oven, Haul-Off, Winder
Control Integration Control System 1 Master PLC controlling all motors, temperature zones, pneumatic units across the line
Control Integration Synchronization Mode Full-line speed sync, closed-loop tension, linked start/stop, fault interlock shutdown
Performance Metrics Designed Max Line Speed 120 m/min
Performance Metrics Estimated Annual Capacity Up to 1500+ tons (depends on product spec & operational efficiency)
Physical Parameters Approx. Total Line Length ~45-60 meters (depending on configuration)
Physical Parameters Total Installed Power ≤ 120 KW
Frequently Asked Questions
What are the advantages of an integrated line compared to piecing together equipment from different suppliers?
The core advantage is seamless synergy. We ensure all units—including extruder output, draw ratios, and haul-off/winding speeds—are perfectly matched from the design stage, avoiding interface incompatibility, speed mismatches, and tension control conflicts. This results in higher stability, lower failure rates, more convenient operation with a single control interface, and a single point of responsibility for after-sales service.
If one unit (e.g., the winder) fails, does the entire line have to stop?
Yes, this ensures production safety and product consistency. However, our control system features comprehensive fault diagnosis for quick problem localization. Key units are designed with modularity for easy and quick maintenance, aiming to minimize downtime. We can also advise on backup units to further ensure continuous production.
