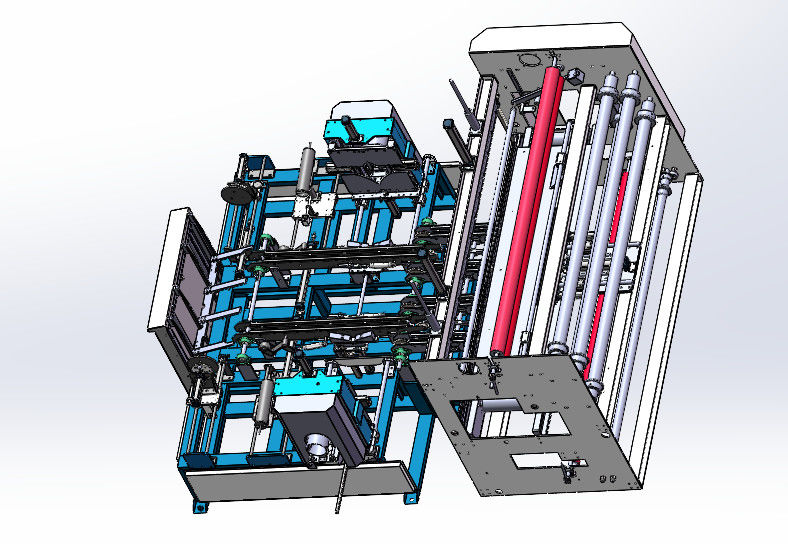

Automatic Fabric Roll Wrapping Machine PE Film Pillow Winding Packing Machine

Automatic Fabric Roll Wrapping Machine PE Film Pillow Winding Packing Machine

Characteristic of Automatic Fabric Roll Packing Machine

The Automatic Textile Fabric Roll Packing Machine is designed for a fully automated process, reducing manpower to a single operator, thus optimizing investment returns. It integrates automatic fabric inspection, vacuum packaging, labeling, and classification functions, guaranteeing top-notch packaging quality and efficient handling. For seamless data management, the machine can be easily integrated with ERP/MES systems. Optionally, a robotic arm palletizing system can be added to further enhance automation.

The machine effectively shields the packaging from moisture, dust, leaks, and pollution, minimizing additional costs during transportation and storage. It primarily utilizes a motor for movement, controlled by PLC, with a self-induction system for carton or case induction. Operation is straightforward, safe, stable, reliable, and durable.

Automatic Textile Fabric Roll Packing Machine for Tubular Fabric

1. Multi-Functional: Capable of cloth rolling, cloth measuring, and cloth inspection, providing a comprehensive solution for fabric processing.

2. Adjustable Speed: Features a governor for selectable speed control, allowing for flexible adjustment of fabric rolling speed.

3. Accurate Length Measurement: Equipped with a yards/meters counter, ensuring precise measurement of fabric length.

4. Flexible & User-Friendly: Designed for ease of operation, making it simple for operators to handle and control.

5. Stable & Durable: Rational structural design and the use of high-quality components ensure stability and long-lasting performance.

6. Customizable Working Width: We can customize the working width of the machine based on the specific requirements of our customers.

Technical Parameter of Textile Fabric Roll Packing Machine:

Model CQ-AFR16

• Textile Roll Parameters

  • Width Range: 1000~1600mm

  • Diameter Range: 100~350mm

  • Weight Range: 5~60kg

• Production Capacity

  • Rolls Packed per Minute: 5~6 rolls

• Packaging Film Parameters

  • Material: LDPE Film

  • Thickness: 0.03~0.08mm

• Power Requirements

  • Voltage: AC380V

  • Phase: 3-Phase

  • Frequency: 50/60HZ

  • Power Consumption: 12.6Kw/h

• Air Supply Requirements

  • Air Pressure Range: 5~7kg/cm²

Model CQ-AFR19

• Textile Roll Parameters

  • Width Range: 1000~1950mm

  • Diameter Range: 100~500mm

  • Weight Range: 5~80kg

• Production Capacity

  • Rolls Packed per Minute: 4~5 rolls

• Packaging Film Parameters

  • Material: LDPE Film

  • Thickness: 0.03~0.08mm

• Power Requirements

  • Voltage: AC380V

  • Phase: 3-Phase

  • Frequency: 50/60HZ

  • Power Consumption: 14Kw/h

• Air Supply Requirements

  • Air Pressure Range: 5~7kg/cm²

Special specifications can be customized

Advantage

One Operator Only!
Vaccum Packing Effect!
6 Times Efficiency Improved!
Max.60% Labor Cost Saving!
