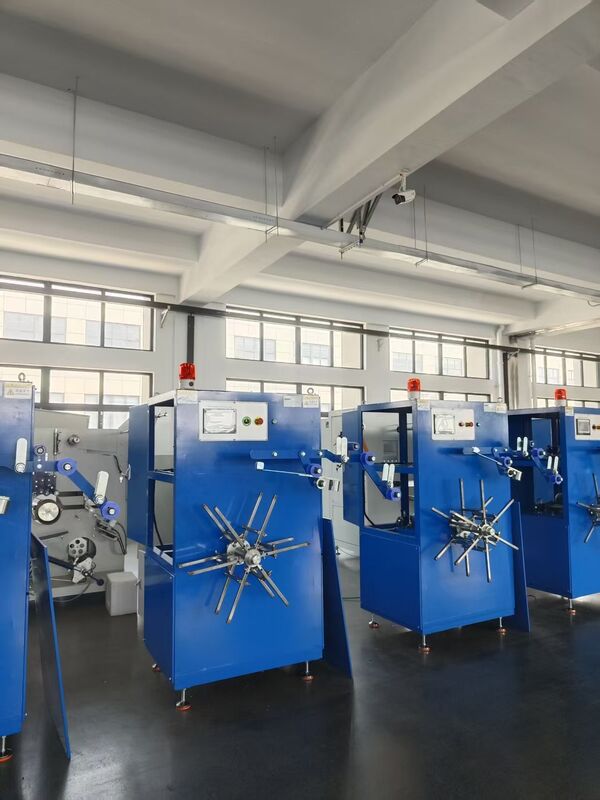

Adjustable Coil Diameter Hose Winder

Adjustable Coil Diameter Hose Winder
Adjustable Coil Diameter Hose Winder

Large Image :  Adjustable Coil Diameter Hose Winder

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: FCL
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 100SETS
Contact Now

Adjustable Coil Diameter Hose Winder

Description
Inner Diameter Range: Φ100-250mm Maximum Outer Diameter: Φ400mm
Coil Width: 152/203mm Adjustment Method: Side Plate Replacement
Coreless Winding: Supported Roll Change Frequency: Reduced
Packaging Cost: Lowered Transportation Cost: Lowered
End Face Quality: Flat Customization Capability: Strong
Highlight:

adjustable hose winder machine

,

rubber strip hose winder

,

coil diameter hose winder

Adjustable Coil Diameter Hose Winder
This equipment supports flexible adjustment of coil inner diameter and outer diameter to meet different packaging and transportation requirements. The coil inner diameter can be adjusted within the range of Φ100-250mm, with a maximum outer diameter of up to Φ400mm. By adjusting winding parameters and replacing the corresponding side plates, operators can easily set the target coil diameter.
Larger coil diameters (max outer diameter Φ400mm) mean longer hose length per roll, reducing roll change frequency and operator labor intensity, while also lowering packaging material and transportation costs. The flexible adjustment of coil inner diameter accommodates different paper core specifications or direct coreless winding requirements.
Technical Specifications
Parameter Specification
Coil inner diameter range Φ100 - 250 mm (customizable)
Coil width 152 mm / 203 mm
Maximum coil outer diameter Φ400 mm
Adjustment method Parameter setting + side plate replacement
Coreless winding Supported (inner diameter directly formed)
Applicable scenarios Different transportation/storage requirements
Key Features
  • Adjustable inner diameter: Φ100-250mm range accommodates different paper cores or coreless needs
  • Maximum outer diameter: Φ400mm for longer roll length
  • Reduced roll change frequency: Larger diameter means fewer changes - improved efficiency
  • Lower packaging cost: Larger diameter reduces packaging materials and labor
  • Lower transportation cost: Larger diameter reduces per-unit shipping cost
  • Flexible adaptation: Inner and outer diameters customizable per customer requirements
  • Coreless winding support: Direct forming of hollow rolls saves consumable costs
  • Quick side plate replacement: Fast changeover with minimal downtime
  • Flat end face: Maintains neat end faces even at large diameters
  • Multi-specification compatibility: One machine meets different coil diameter needs
Frequently Asked Questions
Q: How is the Φ100-250mm coil inner diameter adjusted?
By replacing winding side plates of different specifications or adjusting the diameter of the pneumatic expanding mandrel. The operation is simple - side plate replacement typically takes only a few minutes.
Q: How much does a Φ400mm maximum outer diameter roll weigh?
Weight depends on the hose/strip material, wall thickness and density. Typical rubber hose/strip rolls weigh between 10-30kg - the equipment structure is designed to handle loads within this range.
Q: Can coreless winding be achieved?
Yes. By adjusting the inner diameter to the required size and using the pneumatic expanding mandrel for fixation, the equipment can directly wind hollow rolls without paper cores as mandrels.
