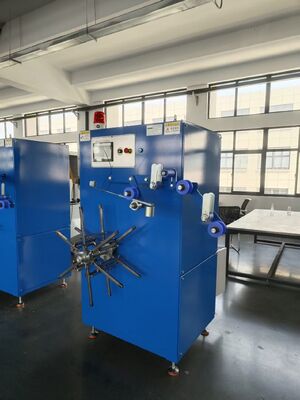

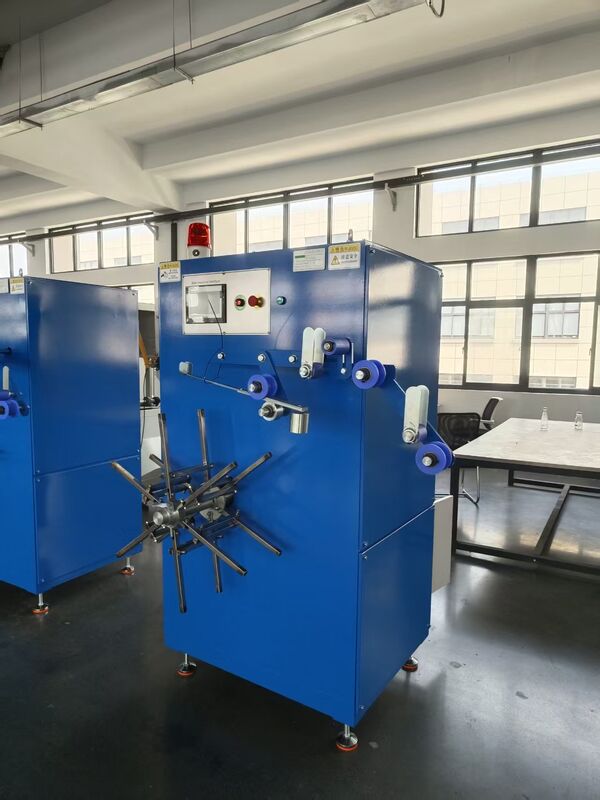

Fully Automatic Hose Winding Machine – Efficient Production

Fully Automatic Hose Winding Machine – Efficient Production
Fully Automatic Hose Winding Machine – Efficient Production

Large Image :  Fully Automatic Hose Winding Machine – Efficient Production

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: FCL
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 100SETS
Contact Now

Fully Automatic Hose Winding Machine – Efficient Production

Description
Control Method: Fully Automatic Drive Motor: 750W Servo
Inverter: 1.5KW Max. Linear Speed: 20 M/min
Applicable Pipe Diameter: Φ10-40mm Coil Inner Diameter: Φ100-250mm
Highlight:

fully automatic hose winding machine

,

rubber strip hose winding machine

,

efficient production hose winding machine

Fully Automatic Hose Winding Machine – Efficient Production
Overview

This equipment is a fully automatic rubber and plastic pipe/hose/strip winding machine that adopts an advanced automation control system to realize integrated operations of automatic feeding, cutting, winding and positioning. Driven by a 750W servo motor paired with a 1.5KW inverter, it achieves a maximum linear speed of 20 m/min. Fully automatic winding greatly reduces manual intervention - one operator can simultaneously monitor multiple machines, significantly improving production efficiency and Overall Equipment Effectiveness (OEE).

Technical Specifications
Parameter Specification
Product name Tube/pipe/hose/strip winding machine
Applicable tube diameter Φ10-40mm (customizable)
Winding direction Left to right / right to left selectable
Max. linear speed 20 m/min
Coil inner diameter Φ100-250mm (customizable)
Coil width 152mm / 203mm
Max. coil outer diameter Φ400mm
Motor power 750W
Inverter power 1.5KW
Electrical components CHNT (customizable Siemens/Schneider/Omron)
Key Features
  • Fully automatic winding: Integrated automatic feeding, cutting, winding and positioning
  • Efficient production: Greatly improves production efficiency and reduces labor costs
  • Servo drive: 750W servo motor with fast response and high precision
  • Inverter speed control: 1.5KW inverter for smooth, adjustable speed
  • High-speed winding: Max linear speed 20 m/min to match production line pace
  • One operator, multiple machines: A single operator can monitor several machines simultaneously
  • Reduced manual intervention: High automation level reduces labor intensity
  • Continuous production: No frequent stoppages - high OEE
  • Simple operation: Touch screen parameter setting, one-key start
  • Stable and reliable: High-quality materials and manufacturing processes, low failure rate
Frequently Asked Questions
Q: How much efficiency improvement does fully automatic winding offer compared to semi-automatic equipment?
A: Fully automatic winding realizes full-process automation of feeding, cutting, winding and positioning, eliminating the need for manual intervention for each roll's start/stop and changeover. Compared to semi-automatic equipment, overall efficiency can be improved by over 50%, while significantly reducing labor costs.
Q: Is the winding speed adjustable?
A: Yes. Through the 1.5KW inverter, the winding speed is continuously adjustable from 0 to 20 m/min, adaptable to different materials and specifications of pipe/strip products.
Q: Can the machine adapt to different pipe diameters?
A: Yes. The standard applicable pipe diameter is Φ10-40mm. By adjusting relevant parameters and changing corresponding tooling, pipe/strip products of different sizes can be easily produced.

Tag:

Hose Winding Machine,

Rubber Strip Winding Machine,

Hose Winding Equipment
