6 Rolls/Min Pillow Fabric Roll Packing Machine Compression Fold Roll Packaging Machine

6 Rolls/Min Automatic Fabric Roll Packing Machine Compression Fold Roll Packing Machine

Characteristic of Automatic Fabric Roll Packing Machine

The Automatic Textile Fabric Roll Packing Machine offers a fully automated process, requiring only one operator, maximizing your return on investment. It incorporates automatic fabric inspection, vacuum packaging, labeling, and classification, ensuring high-quality packaging and efficient handling. It can be connected to ERP/MES systems for seamless data integration. An optional robotic arm palletizing system further enhances the machine's automation capabilities.

The machine efficiently protects the packing from the moisture, dust, leaking, or pollution etc, reduces the extra consume during transportation and storage . The machine mainly adopts motor as movement parts, under PLC control , with the self-induction system to induce the cartons or cases,easily operate ,safty, stable, reliable and endurable in use.

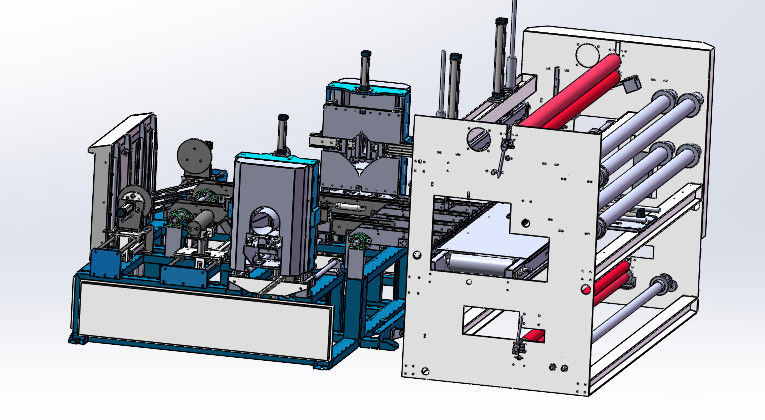

Automatic Textile Fabric Roll Packing Machine for tubular fabric

Technical Parameter of Textile Fabric Roll Packing Machine:

Model CQ-AFR16

• Textile Roll Parameters

  • Width Range: 1000~1600mm

  • Diameter Range: 100~350mm

  • Weight Range: 5~60kg

• Production Capacity

  • Rolls Packed per Minute: 5~6 rolls

• Packaging Film Parameters

  • Material: LDPE Film

  • Thickness: 0.03~0.08mm

• Power Requirements

  • Voltage: AC380V

  • Phase: 3-Phase

  • Frequency: 50/60HZ

  • Power Consumption: 12.6Kw/h

• Air Supply Requirements

  • Air Pressure Range: 5~7kg/cm²

Model CQ-AFR19

• Textile Roll Parameters

  • Width Range: 1000~1950mm

  • Diameter Range: 100~500mm

  • Weight Range: 5~80kg

• Production Capacity

  • Rolls Packed per Minute: 4~5 rolls

• Packaging Film Parameters

  • Material: LDPE Film

  • Thickness: 0.03~0.08mm

• Power Requirements

  • Voltage: AC380V

  • Phase: 3-Phase

  • Frequency: 50/60HZ

  • Power Consumption: 14Kw/h

• Air Supply Requirements

  • Air Pressure Range: 5~7kg/cm²

Special specifications can be customized

Advantage

One Operator Only!
Vaccum Packing Effect!
6 Times Efficiency Improved!
Max.60% Labor Cost Saving!

Our Services

After-sales Service Provided

Online support, Video technical support, Free spare parts, Field maintenance and repair service

After Warranty Service

Video technical support, Online support, Spare parts, Field maintenance and repair service

After-sales Service Provided

Engineers available to service machinery overseas
