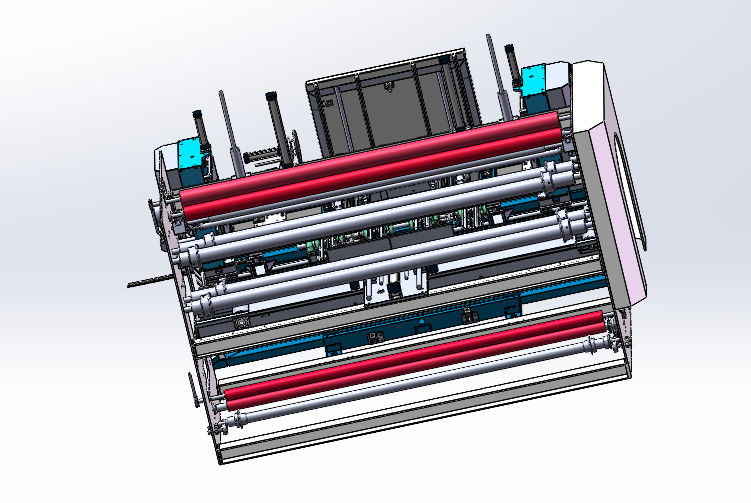

PLC Control Automatic Fabric Roll Packing Machine For Tubular Fabric
Introduction of Automatic Fabric Roll Packing Machine
Intelligent Fabric Inspection with Automatic Packing System can be realized packing fabric from several Fabric Inspection machines of different cloth packaged and transferred to different zones respectively.
This type is designed for high-volume production and typically includes features like motorized conveyors and automated packing systems. It's ideal for large manufacturing plants and garment shops where efficiency is crucial.
Feature of Automatic Fabric Roll Packing Machine
Fully automated process, 1 operator Maximized your ROI!
Automatic Fabric Inspection
Automatic vacuum packaging
Automatic labeling
Automatic classification
Connection to ERP/MES systems
Optional robotic arm palletizing system
Multifunctionality all in one
Fabric roll packing machine typically feature a motorized conveyor belt system that moves the fabric from the cutting or sewing stage to the packing area. Once the material is placed on the conveyor, it is pulled into the packing mechanism where it is either manually or automatically wrapped in a protective layer before being sealed and cut.
Usage of Automatic Fabric Roll Packing Machine:
Automatic Fabric Roll Packing Machine is designed to pack fabric rolls by PE film automatically for garment shops, manufacturing plant, printing shops, advertising company.
Automatic Fabric Roll Packing Machine is designed for high-volume production and typically includes features like motorized conveyors and automated packing systems. It's ideal for large manufacturing plants and garment shops where efficiency is crucial.
Characteristics of Automatic Fabric Roll Packing Machine:
The fabric rolls loaded on the infeed conveyor will be wrapped in a 3-side sealed package, and then the package will be trasferred into a shrink tunnel and rapidly heat shrunk.Finally the package comes outs in a tight but soft shape.Package without shrinkage of PE film is also available in this type fabric roll packing machine.
Technical Parameter:
| Model |
CQ-AFR16 |
CQ-AFR19 |
| Fabic Roll Information |
Width |
1000~1600mm |
1000~1950mm |
| Diameter |
100~350mm |
100~500mm |
| Weight |
5~60kg |
5~80kg |
| Capacity |
5~6 rolls/min |
4~5 rolls/min |
| Packaging film |
Material |
LDPE FILM |
LDPE FILM |
| Thickness |
0.03~0.08mm |
0.03~0.08mm |
| Power Source |
AC380V
3Phase
50/60HZ
12.6Kw/h
|
AC380V
3Phase
50/60HZ
14Kw/h
|
| Air Source |
5~7kg/cm² |
5~7kg/cm² |
Special specifications can be customized
Advantage of Automatic Fabric Roll Packing Machine:
- One Operator Only!
- Vaccum Packing Effect!
- 6 Times Efficiency Improved!
- Max.60% Labor Cost Saving!
The automated operation cycle can be programmed and monitored through microprocessor interface. This textile roll packing machine saves huge labour costs as well as packing time apart from convenience while loading trucks / containers when dispatched from mills.
Our Service:
before sales:
24 hours online service
Any inquiries will be replied within 12 hours
offer professional machine details and information
technology knowledge share.
on sale:
Protect the client payment security.
reasonable price and ensure quality.
send machine pictures , videos as client need and let client know machine more better
after sales:
Fast delivery and test and adjust machine working well before delivery
Supply manual book and technical support in order to use well
offer install pictures step by step or videos and dispatch the engineer
Guarantee time is one year,during one year,offer the spare parts for free
