Multi-Stage Stretching & Heat Setting for Enhanced Product Strength

Multi-Stage Stretching & Heat Setting for Enhanced Product Strength
Multi-Stage Stretching & Heat Setting for Enhanced Product Strength

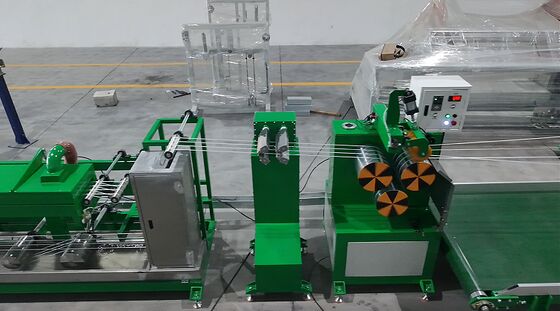

Large Image :  Multi-Stage Stretching & Heat Setting for Enhanced Product Strength

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQ-SPP75-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden box
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 100sets
Contact Now

Multi-Stage Stretching & Heat Setting for Enhanced Product Strength

Description
Process Feature: Multi-Stage Core Process: Stretching & Heat Setting
Equipment Support: Multi-Zone Oven Performance Target: Ultra-High Strength
Quality Metric: Quality Metric Process Controllability: Precise
Product Grade: High-End
Highlight:

PP strapping band production line with heat setting

,

multi-stage stretching PP strapping machine

,

enhanced strength strapping band production equipment

Multi-Stage Stretching & Heat Setting for Enhanced Product Strength
Product Introduction
The foundation of high-strength PP products relies on precise molecular chain orientation and setting. Our production line utilizes an advanced multi-stage stretching and heat-setting process. Following initial extrusion and cooling, the material undergoes low-temperature, moderate-ratio pre-orientation in the first drawing zone. It then progresses through a precisely temperature-controlled oven for preheating and relaxation. Subsequent high-temperature, high-ratio main stretching in the second drawing zone fully orients the molecular chains. The final stage involves heat relaxation and setting in the oven's latter section to stabilize the oriented structure and relieve internal stress. This carefully controlled, staged process maximizes material potential to deliver superior products with exceptional tensile strength, minimal thermal shrinkage, and outstanding dimensional stability.
Main Specifications
  • Process Core: Integrated staged stretching (pre-stretching, main stretching) with heat setting (preheating, heat relaxation)
  • Equipment Implementation: Drawing machine with adjustable draw ratios coordinated with multi-zone oven for precise temperature control
  • Performance Target: Maximum longitudinal tensile strength, optimized toughness, minimal thermal shrinkage
  • Technical Advantage: High process adjustability for fine-tuning to different materials and product requirements
Technical Parameters
Item Parameter / Description
Process Stages 1. Pre-stretching → 2. Preheating → 3. Main Stretching → 4. Heat Setting/Relaxation
Total Draw Ratio Range 1.5 - 12:1 (achieved through combination of stages)
Oven Zone Configuration Minimum 4 independently controlled zones providing precise temperature environments for each stage
Temperature Control Accuracy ±2°C (oven), ensuring stable temperatures for each process stage
Applicable Products Ultra-high strength strapping, high modulus flat yarn, low-shrinkage decorative strips, and similar applications
Process Flexibility Independent adjustment of temperature and speed ratio for each stage to accommodate different formulations
Customer Questions & Answers
What are the advantages of multi-stage stretching over a single high-ratio stretch?
The primary advantages include improved stretching uniformity, reduced internal stress, and lower breakage rates. Single high-ratio stretching can cause localized stress concentration and material failure. Multi-stage stretching enables progressive molecular chain orientation under controlled temperatures, resulting in smoother processing, more uniform orientation, and ultimately higher product strength with consistent properties—particularly beneficial for thick or wide products.
What are the specific functions of preheating and heat setting?
Preheating: Heats the cooled original tape blank to its "rubbery state," softening the material to withstand subsequent high-ratio stretching and prevent brittle fracture from cold drawing.

Heat Setting: Conducted immediately after main stretching, maintaining the tape at elevated temperature under tension briefly. This allows partial relaxation and re-crystallization of oriented molecular segments, "fixing" the stretching effect, significantly reducing subsequent thermal shrinkage, and enhancing dimensional stability.
Is adjusting this complex process difficult?
Operation is straightforward but requires understanding of process principles. All critical parameters (speed ratios for each section, temperatures for each oven zone) are centrally configured and displayed on the PLC touch screen. We establish baseline process recipes during commissioning. When changing raw materials or target products, typically only fine-tuning of draw ratios and temperatures based on the baseline recipe is necessary, with guidance from our experienced technicians.
