All-in-One Control: Monitor & Adjust Entire Process from a Single Touch Screen Panel

Large Image : All-in-One Control: Monitor & Adjust Entire Process from a Single Touch Screen Panel

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI
Model Number:	CQ-SPP75-4

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	100SETS

Contact Now

All-in-One Control: Monitor & Adjust Entire Process from a Single Touch Screen Panel

Description

Control Core:	Xinje PLC-based Computer Central Control System	Operation Interface:	Integrated Touch Screen For Intuitive, Visual Operation
Monitoring Scope:	Centralized Monitoring Of The Entire Line—extrusion, Temperature Control, Haul-off, Winding	Coordinated Adjustment:	Synchronized Control Of Line Speed, Temperature, And Tension
Data Visualization:	Eal-time Display Of Production Parameters And Alarm History	Language Support:	Optional Chinese/English Operation Interface
Expandable Interface:	Supports Optional Remote Monitoring And Data Acquisition Functions
Highlight:	PP strapping band production line control panel , touch screen panel for strapping production , monitor adjust strapping line process

All-in-One Control: Monitor & Adjust Entire Process from Single Touch Screen Panel

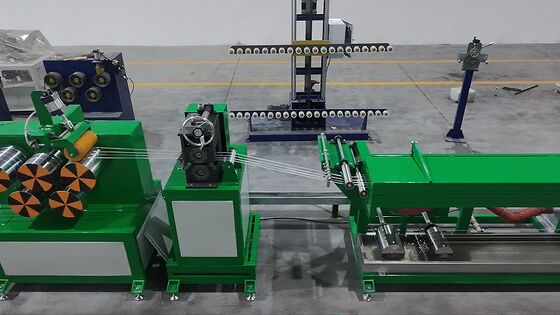

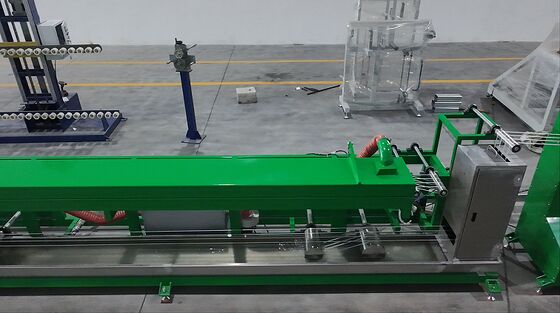

This production line features an advanced central control system with an integrated touch screen operation panel that enables centralized monitoring and coordinated adjustment of the entire production process. Operators can manage extrusion, temperature control, haul-off, stretching, and winding operations from a single interface without moving between multiple machines.

Centralized Process Control

View all key parameters including temperature, speed, tension, and meterage in real-time with one-touch coordinated adjustments. This streamlined approach simplifies operations, reduces personnel skill requirements, and ensures highly synchronized and stable process parameters across the entire production line.

Main Specifications

Control Core: Xinje PLC-based computer control system
Operation Interface: Color touch screen with graphical Human-Machine Interface (HMI)
Monitoring Scope: Covers all line equipment including extruder, temperature zones, haul-off unit, and winder
Control Functions: Speed synchronization, temperature setting, tension adjustment, alarm logging
Data Management: Real-time display, parameter storage, and recall capabilities

Technical Parameters

Item	Parameter / Description
PLC Brand/Model	Xinje Series
Operation Panel	Industrial-grade color touch screen
Temperature Control Zones	Extruder: 8 zones (Barrel 5 + Die Head 3)
Speed Control Accuracy	±1 m/min (Haul-off speed)
Data Display	Speed, Temperature, Length, Tension, Alarms, etc.

Frequently Asked Questions

Is the control system easy to learn and operate?

Yes, the system features a graphical touch screen interface with clear logic and prominently displayed key parameters. Comprehensive operation training is provided, enabling ordinary workers to become proficient operators after a short learning period.

Does it support multi-language interface and remote production status viewing?

The control system supports switching between Chinese and English interfaces. Remote monitoring is available as an optional configuration, providing solutions to view real-time production data and alarm information remotely via computer or mobile devices.

If the touch screen or PLC fails, will it cause a complete line shutdown?

Core control components utilize industrial-grade products with high reliability. Detailed circuit diagrams and technical support are provided. Key equipment retains emergency stop buttons and basic manual operation modes, allowing emergency handling to prevent complete line shutdown in extreme situations.
