Pneumatic Shaft Locking for Easy Loading & Unloading of Rolls

Description
Highlight:

pneumatic shaft locking for rolls

,

PP strapping band production equipment

,

easy loading unloading roll mechanism

Pneumatic Shaft Locking for Easy Loading & Unloading of Rolls

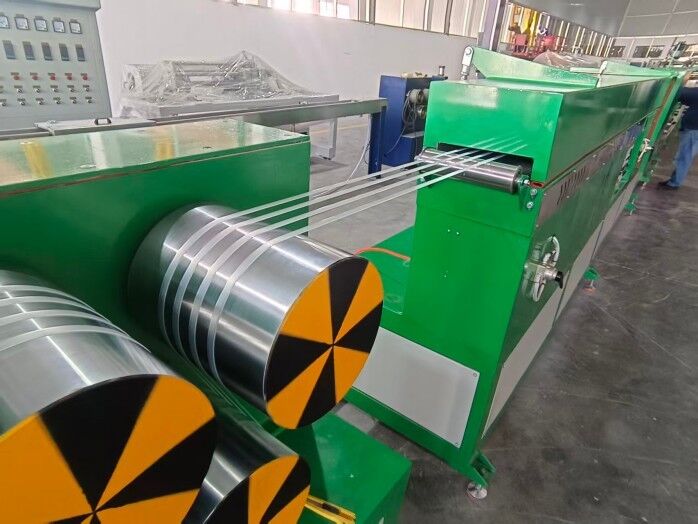

The efficiency of roll changes on winding machines directly impacts overall production efficiency and operational convenience. This automatic winding machine features an advanced pneumatic shaft locking mechanism that streamlines the loading and unloading process.
Product Introduction
When loading or unloading paper cores or finished rolls, operators simply press a control button to activate the pneumatic locking mechanism. The system instantly releases the winding shaft via air cylinder actuation, and automatically locks firmly in place after installation. This innovative design eliminates traditional manual bolt tightening, significantly reducing operator labor intensity, shortening roll change time, and making the winding process more efficient, safe, and user-friendly.
Main Specifications
  • Locking Method: Pneumatically driven, button-controlled operation
  • Operational Target: Winding mandrels of the winding machine
  • Core Advantage: Fast, labor-saving, and safe roll change operation
  • User Value: Enhanced operational convenience, reduced labor intensity, improved roll change efficiency
Technical Parameters
Item Parameter / Description
Locking Power Compressed air-driven cylinder
Control Method Remote control via electrical button / foot pedal switch
Locking Components Expansion mechanisms of each independent winding mandrel
Operation Time Locking/Releasing actions typically complete within 1-3 seconds
Safety Design Usually interlocked with winding motor; machine cannot start if shaft is not locked
Air Source Requirement Clean, dry compressed air, pressure 0.4-0.6 MPa
Frequently Asked Questions
Is the pneumatic locking force sufficient? Could slippage occur under high winding tension?
The force is precisely calculated and sufficient. The pneumatic locking mechanism uses a cylinder to push slant or cams, converting axial force into significant radial expansion force. This creates extremely high static friction between the expansion sleeve and the paper core's inner wall. The locking force far exceeds the maximum torsional force generated during winding, ensuring no slippage occurs under any normal winding tension.
If the factory has a sudden air supply failure, will an already locked shaft loosen?
It will not loosen accidentally. The pneumatic locking mechanism typically uses a fail-safe (energize/fill to release) design. This means the locked state is maintained by mechanical self-locking or springs; even without air pressure, the locking force remains, ensuring equipment and product safety. After air supply resumes, the release button must be actively operated to unlock.
Compared to manual bolts, is maintenance for this mechanism more complex?
Maintenance is not complex. The core moving part (cylinder) is a standard industrial component with high reliability and long life. Daily maintenance only requires ensuring the air source is clean and dry to prevent internal cylinder rust or jamming. Periodically check air hose connections for leaks. The efficiency gains and operational convenience it provides far outweigh the simple maintenance needs.
