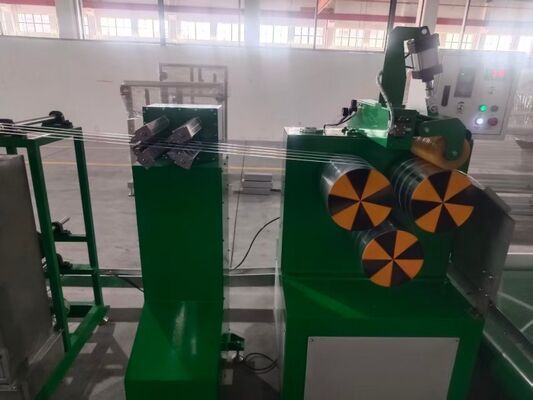

Fast Automatic Feeding Drying PP Strapping Band Production Line For Moisture Control ≤0.1%

Fast Automatic Feeding Drying PP Strapping Band Production Line For Moisture Control ≤0.1%
Fast Automatic Feeding Drying PP Strapping Band Production Line For Moisture Control ≤0.1%

Large Image :  Fast Automatic Feeding Drying PP Strapping Band Production Line For Moisture Control ≤0.1%

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 100SETS
Contact Now

Fast Automatic Feeding Drying PP Strapping Band Production Line For Moisture Control ≤0.1%

Description
System Function: Automatic Feeding & Drying Core Indicator: Moisture Content ≤0.1%
Drying Temperature: 0-120°C Adjustable Hopper Material: 304 Stainless Steel
Control Method: Fully Automatic Quality Role: Source Control
Highlight:

automatic PP strapping band production line

,

Fast PP strapping band production line

,

Auto PP Strapping Band Extrusion Line

Automatic Feeding & Drying for Moisture Control ≤0.1%
Raw material handling is the foundation of high-quality production. This production line integrates a fully automatic feeding system and raw material drying pre-treatment system to ensure process stability from the source. The suction feeder automatically replenishes PP pellets based on hopper material levels, achieving uninterrupted material supply. The built-in drying module provides precise temperature control from 0-120°C, effectively removing moisture and ensuring material entering the extruder has ≤0.1% moisture content. This eliminates defects such as product bubbles, surface splay marks ("silver streaks"), and mechanical property degradation caused by moisture volatilization.
Main Specifications
  • Functional Integration: Automatic vacuum feeding + raw material hot-air drying
  • Performance Indicator: Post-treatment raw material moisture content ≤ 0.1%
  • Drying Control: Temperature settable and adjustable from 0-120°C
  • Core Objective: Continuous dry raw material supply, eliminating quality issues at process source
Technical Parameters
Item Parameter
Hopper Capacity 100 KG (304 Stainless Steel)
Automatic Feeder Power 750W / 380V (suction speed adjustable)
Drying Method Built-in dehumidifying dryer, sealed circulating hot air
Drying Temperature Range 0 - 120°C (adjustable, typically set to 80-100°C)
Dehumidification Capability Ensures stable raw material moisture content ≤ 0.1%
Control Logic Material level automatically controls feeder start/stop; independent temperature controller sets drying temperature
Frequently Asked Questions
How strict is the ≤0.1% moisture content indicator? What happens if it's not met?
This is a critical process indicator. Excessive moisture in PP raw material instantly vaporizes in the extruder's high-temperature zone, forming vapor pockets. This leads to defects including "silver streaks" (surface whitening), internal micropores, reduced gloss, and severe degradation of tensile strength and impact toughness, resulting in non-conforming products.
Does the drying function need to be kept on all the time? Will it consume a lot of electricity?
Continuous operation is required. Even initially dry raw material absorbs moisture from workshop environments. The 750W dryer power is relatively small compared to overall line energy consumption, but provides immense quality stability benefits. Turning off drying may save electricity, but moisture-related scrap causes losses in raw material and production capacity that far exceed electricity costs.
Can this system handle recycled material or material with exceptionally high moisture?
The standard drying module is suitable for general virgin material and well-dried recycled material. For raw material with abnormally high initial moisture content (exceeding 1%), standard cycle drying time may be insufficient. We recommend pre-drying such material before feeding, or opting for a custom dryer with greater dehumidification capacity.
