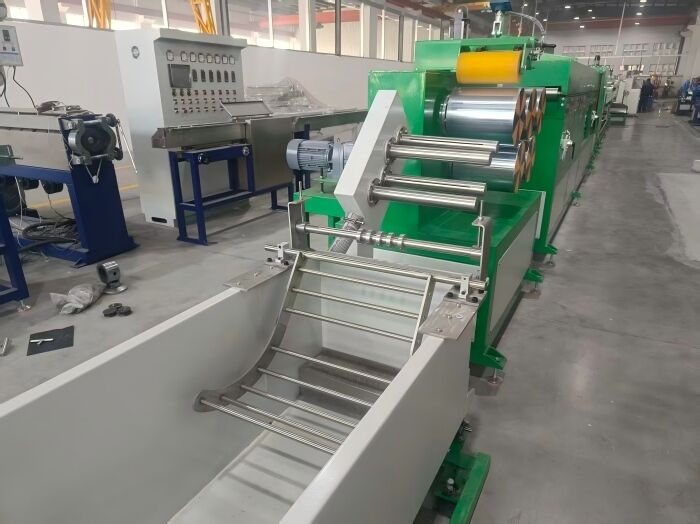

Fully Automated 4-Strand PP Production Line with Touch Screen Control

Large Image : Fully Automated 4-Strand PP Production Line with Touch Screen Control

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	100SETS

Contact Now

Fully Automated 4-Strand PP Production Line with Touch Screen Control

Description

Automation Level:	Full-Process Automatic	Human-Machine Interaction:	Touch Screen
Control Core:	PLC	Data Function:	Recipe Management
Monitoring Scope:	Comprehensive Parameters	Operation Simplification:	One-Key Operation
Production Mode:	Standardized
Highlight:	fully automated PP strapping production line , 4-strand PP band production machine , touch screen PP strapping line

Fully Automated 4-Strand PP Production Line with Touch Screen Control

Smart Manufacturing Solution for Industry 4.0

This advanced production line delivers complete automation from raw material input to finished product winding. Featuring a large touch screen interface for centralized control of all process parameters, operators can easily set or recall production recipes including temperature, speed, tension, and length settings. The system automatically manages feeding, extrusion, cooling, stretching, embossing, hauling, and fixed-length winding operations.

Key Specifications

Automation Level: Full-process automation (feeding, extrusion, stretching, winding)
Control System: PLC + Touch Screen HMI (Human-Machine Interface)
Core Functions: Recipe storage and recall, one-key start/stop, centralized parameter monitoring
Operational Benefits: Simplified operation, reduced manpower requirements, standardized production output

Technical Parameters

Item	Parameter
Automation Functions	Auto feeding, auto drying, auto temperature control, auto haul-off synchronization, auto length counting/winding, fault alarm
Control Interface	Color Touch Screen
Control Core	PLC (Programmable Logic Controller)
Data Management	Production recipe storage and recall
Monitored Parameters	Temperature, Speed, Length Count, Tension, Current, etc.
Operation Mode	Independent / Linked Mode

Frequently Asked Questions

Does "full automation" require additional configuration of robotic arms or robots?

No. In this context, "full automation" refers to automation of production process control, not material handling logistics. The system includes automatic raw material conveying, automatic execution of process parameters, and automatic fixed-length winding with alarm functions. Manual or auxiliary equipment is still required for handling and offloading finished rolls.

Is touch screen operation easy to learn? Can operation permissions be set for different levels of personnel?

Yes, the interface is designed for intuitive operation using a combination of icons and numerical inputs. We provide Chinese/English interface options. The advanced PLC control system supports multi-level password permissions, including Operator level (view/start/stop only), Technician level (adjust common parameters), and Engineer level (modify all recipes and system parameters), effectively preventing misoperation.

If there is a power outage or sudden shutdown, will the parameters be lost upon restart?

No. The PLC and touch screen's internal memory features data retention functionality. Even after power loss, all set process parameters and recipes remain safely saved. Upon repowering, previous production recipes can be directly recalled and implemented immediately.
