From Pellet To Finished Coil Integrated PP Production Chain Production Line

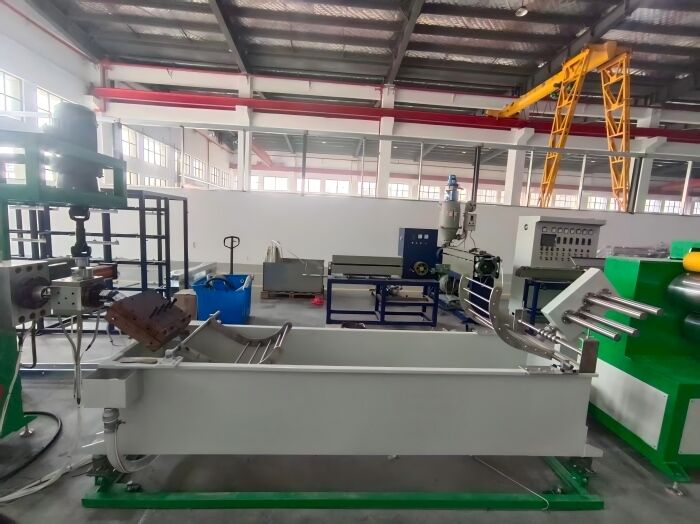

Large Image : From Pellet To Finished Coil Integrated PP Production Chain Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	100SETS

Contact Now

From Pellet To Finished Coil Integrated PP Production Chain Production Line

Description

Process Completeness:	Covers Full Process From Raw Material To Finished Product	Design Uniformity:	1100mm Unified Centerline Height
Control Synergy:	Full-Line Speed Linkage Synchronization	Product Final State:	All Processing Completed In-Line
Delivery Mode:	Turnkey Project	Value Chain:	Integrated Production Solution
Quality Characteristic:	Continuous Stable Formation
Highlight:	Integrated PP strapping band production line , integrated PP pellet production Line , finished PP coil manufacturing Line

Complete PP Strapping Production Value Chain

We provide a fully integrated PP strapping production solution that transforms raw material pellets into finished coils through a continuous, seamless process. This comprehensive system eliminates intermediate handling and secondary processing, ensuring consistent product quality and maximum production efficiency.

Key Process Features

Full-Process Coverage: Complete integration from raw material handling and extrusion forming to heat treatment, post-processing, and finished product handling
Seamless Process Connection: Unified centerline height (1100mm) and precise speed synchronization ensure smooth material transfer
In-Line Quality Formation: Product physical properties and appearance are established during production, eliminating need for secondary processing
Turnkey Delivery: Complete integrated commissioning ensures uninterrupted production from raw material to finished rolls

Technical Specifications

Parameter Category	Parameter Item	Specification / Description
Process Chain Length	Approx. Total Line Length	25 - 35 meters (depending on configuration)
Process Chain Length	Number of Main Functional Units	≥ 10
Process Continuity	Centerline Height	Unified 1100 mm
Process Continuity	Inter-Unit Speed Synchronization	Closed-loop control, linked start/stop
Final Product State	Product Form	Finished rolls with completed stretching, setting, embossing
Final Product State	Roll Weight Range	Up to 20 - 50 kg/roll (depending on specification)
Delivery Standard	Trial Run Output Requirement	Continuous stable production of finished products meeting sample standards
Delivery Standard	Capacity Fulfillment	Meets or exceeds contracted capacity

Frequently Asked Questions

What are the main advantages of an integrated production line versus purchasing segmented equipment?

The core advantages are unified responsibility and performance guarantee. As a single supplier, we assume full responsibility for process matching and technical support, avoiding vendor coordination issues. Our integrated design ensures optimal performance through careful consideration of unit coupling relationships, provides efficient commissioning, and offers convenient one-stop after-sales service.

If a component breaks down, does the entire production line need to stop?

Yes, due to continuous material transfer, critical unit failures require full-line stoppage. This characteristic ensures integrated quality assurance by immediately exposing any process instability. To minimize downtime impact, we implement high-reliability equipment design, rapid diagnostic systems, and provide critical spare parts lists. Preventive maintenance is emphasized over reactive repair for optimal operational efficiency.
