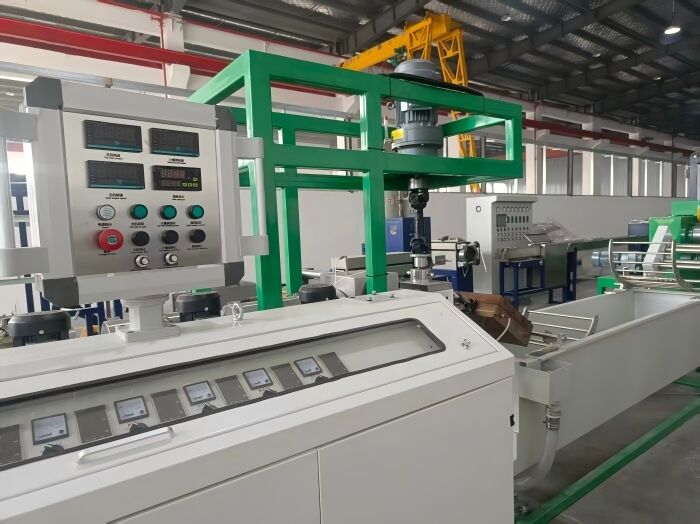

Efficiency Engineered Plastic Strap Manufacturing Machine Energy Smart PP Processing Line

Efficiency Engineered Plastic Strap Manufacturing Machine Energy Smart PP Processing Line
Efficiency Engineered Plastic Strap Manufacturing Machine Energy Smart PP Processing Line

Large Image :  Efficiency Engineered Plastic Strap Manufacturing Machine Energy Smart PP Processing Line

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 100SETS
Contact Now

Efficiency Engineered Plastic Strap Manufacturing Machine Energy Smart PP Processing Line

Description
Thermal Management: Cast Aluminum Heaters + PID + SSR Insulation Design: 50mm Thick Oven Insulation
Power Core: High-Efficiency Motor + ABB Inverter Cooling Strategy: Temperature-Controlled Auto Start/Stop
Efficiency Outcome: 10-20% Lower Power Per Ton Product Temperature Control Accuracy: ±1°C, Reduces Heat Waste
Design Philosophy: Systematic Efficiency Engineering
Highlight:

energy-efficient PP processing line

,

PP strapping band production machine

,

smart PP strapping manufacturing line

Efficiency Engineered: The Energy-Smart PP Processing Line
In today's competitive manufacturing landscape with rising energy costs, production line efficiency directly impacts product competitiveness. Our energy-smart PP processing line incorporates comprehensive efficiency engineering from thermal, electrical, and operational management perspectives. The extruder utilizes zone-independently controlled cast aluminum heaters with high thermal efficiency and intelligent PID regulation to minimize ineffective heating. The oven features 50mm thick high-quality insulation that significantly reduces heat loss. Main drives and winders employ high-efficiency motors and inverters, while cooling fans automatically start and stop based on temperature feedback. These integrated measures represent systematic energy optimization designed to substantially reduce energy consumption per ton of product, converting every kilowatt-hour into measurable output value.
Key Features & Specifications
Efficient Heating System
  • Cast aluminum heaters provide superior thermal conductivity
  • Independent zone control with solid-state relays (SSR) and PID temperature modules
  • Rapid heating and precise heat preservation capabilities
  • Reduced overshoot and energy waste from thermal inertia
Comprehensive Thermal Insulation
  • Setting oven features full-body insulation plus hot air curtains or thermal barriers at inlets/outlets
  • High-temperature pipelines (including die connections) are wrapped with insulation
Power System Efficiency
  • Main extrusion motor utilizes high-efficiency models
  • High-performance ABB inverter enables soft start and on-demand power delivery
  • Eliminates no-load losses associated with constant frequency operation
Intelligent Cooling Management
  • Cooling fans and water pumps adjust automatically based on temperature sensor feedback
  • Achieves "cooling on demand" through variable airflow and water flow control
  • Eliminates continuous full-speed operation for significant energy savings
Technical Parameters
Parameter Category Parameter Item Specification / Description
Heating System Heater Type Cast Aluminum Heaters
Temperature Control Method PID + SSR (Solid-State Relay)
Heating Time (Room Temp → Set) Approx. 30-45 minutes
Insulation Measures Oven Insulation Thickness 50 mm High-Temp Glass Wool
Surface Temp Rise (vs. Ambient) ≤ 15°C (at steady-state operation)
Power Efficiency Main Motor Efficiency Class GB3 or above (equivalent to IE3)
Inverter Brand/Efficiency ABB, > 97%
Intelligent Cooling Cooling Fan Control Temperature-Controlled Auto Start/Stop/Speed
Cooling Water Pump Recirculating, Adjustable Flow
Comprehensive Efficiency Specific Power Consumption per Ton (Reference) 10-20% lower than conventional design
Frequently Asked Questions
Q: How much electricity can your "energy saving" actually save? Is there data to support it?
Energy savings vary with product specification, production speed, and local climate (affecting cooling load). We can provide a comparative analysis based on typical operating conditions. For example, compared to older lines using ceramic heater bands, no oven insulation, and constantly running fans, this line primarily achieves savings through: 1) Improved heating efficiency (~5-8%); 2) Reduced heat loss from oven insulation (~10-15%); 3) Intermittent operation of fans/pumps (~5-10%); 4) High-efficiency motors and inverters (~3-5%). The combined potential energy saving is typically in the range of 10%-20%. For a line consuming hundreds of thousands of kWh annually, this translates to tens of thousands of dollars saved in electricity costs each year.
Q: If insulation is too good, could it hinder equipment heat dissipation and affect electrical component lifespan?
This is an excellent question. Our insulation design employs targeted thermal management, not simple wrapping. Insulation mainly covers process components needing high temperatures (e.g., oven, die head), while for components requiring cooling like electrical cabinets and motors, we not only avoid insulation but enhance ventilation design. The control cabinet has cooling fans and filters; key motors have adequate cooling air passages. This design principle of "insulate where needed, dissipate where required" ensures both energy savings and stable equipment operation with component longevity.
