Direct Extruder Parallel Winding Pet Strap Semi-auto Winder

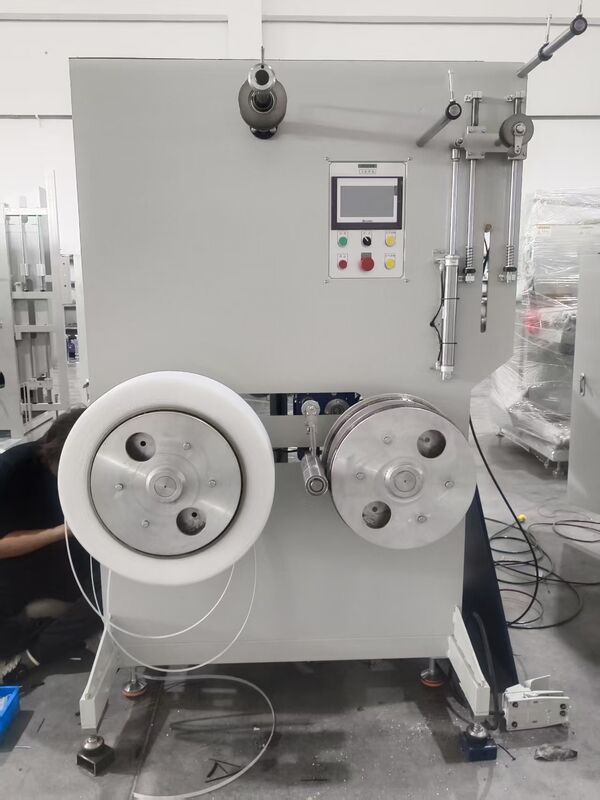

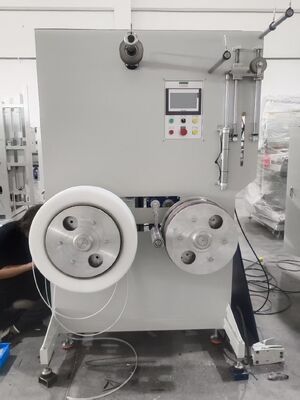

Large Image : Direct Extruder Parallel Winding Pet Strap Semi-auto Winder

Product Details:

Place of Origin:	China
Brand Name:	CHUQI
Model Number:	CQ800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD/RMB
Packaging Details:	WOOD BOX
Delivery Time:	60 DAYS
Payment Terms:	T/T
Supply Ability:	1000 SETS

Contact Now

Direct Extruder Parallel Winding Pet Strap Semi-auto Winder

Description

Connection Method:	Direct Parallel Winding	Accumulator Needed:	No
Speed Compensation:	Dancer Constant Tension Auto Adjustment	Simultaneous Straps:	1 Or 2 (depending On Configuration)
Installation Distance:	1–2 M Downstream Of Extruder	Strap Width Range:	9–32 Mm
Coordinated Control:	Can Communicate With Extruder PLC
Highlight:	PET strap semi-auto winder , CQ800 strap winding machine , industrial PET strap tool

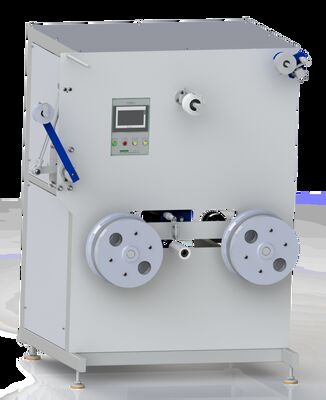

Direct Extruder Parallel Winding Pet Strap Semi-auto Winder

Overview

The CQ800 semi-automatic PET strap winder supports direct parallel winding from the extruder. After cooling, the strap enters the winding station directly from the extruder exit, eliminating the need for accumulator stands or buffer equipment. This direct integration effectively shortens the total production line length, reduces strap exposure time, and lowers contamination and stretching risks. The machine uses a dancer constant tension system to automatically compensate for minor speed fluctuations between extrusion and winding, ensuring smooth operation. Available with 1 or 2 mandrels, the CQ800 can be directly linked to the extruder line for efficient extrusion-to-winding integrated production, ideal for new plants or those wanting to optimize line layout.

Technical Specifications

Parameter	Specification
Model	CQ800
Extruder connection	Direct parallel winding (no accumulator needed)
Simultaneous straps wound	1 or 2 (depends on mandrel count)
Winding speed range	50 - 250 m/min
Tension compensation	Dancer constant tension (auto speed difference compensation)
Strap width range	9 - 32 mm
Max package outer diameter	820 mm
Installation position	1-2 m downstream of extruder
Continuous operation	Yes

Key Features

Direct connection - Eliminates accumulator and buffer rollers, simplifies line.
Speed adaptive - Dancer constant tension automatically compensates extrusion/winding speed differences.
Shortens line length - Reduces equipment footprint, lowers building cost.
Reduces contamination - Short exposed strap path lowers dust and oil pick-up.
Prevents stretching - Fewer rollers reduce accidental strap deformation.
Easy installation - Place after extruder cooling section; no line modification needed.
Automation ready - Can communicate with extruder PLC for coordinated control.

Frequently Asked Questions

Q1: Does direct extruder integration require retrofitting my existing line?

No. Simply place the CQ800 1-2 meters after the extruder cooling bath or air-cooling section, then re-thread. Your existing accumulator can be kept or removed.

Q2: How does the winder handle extruder speed fluctuations?

The dancer constant tension system continuously senses strap sag or tension and automatically adjusts winding motor torque and speed to absorb differences, ensuring smooth winding.

Q3: When winding two straps (dual-mandrel model), can each side have its own speed control?

Both straps share the same extruder speed, but each winding station has an independent dancer tension control, allowing individual tension adjustments for minor side-to-side differences.

Q4: If the extruder stops temporarily, will the winder stop automatically?

Yes. By connecting signals, the extruder stop signal can be sent to the winder PLC, which will slow down and stop to avoid strap accumulation or tearing.

Q5: Does direct integration improve strap quality?

Yes. The shortened path from extrusion to winding reduces friction and bending over intermediate rollers, resulting in better surface finish and improved dimensional stability.

Tag:

Contact Person: Mr. Alex

Tel: 86-18858326160

Other Products

Semi-Auto Strap Winder – Manual Bobbin Change, Automatic Winding, High Cost Performance

Operation type: Semi‑automatic

Manual tasks: Bobbin change

Automatic tasks: Tension, layering, speed, measurement, stop

Change‑over time (single mandrel): <2 minutes

Weight & Length Dual Measurement PET Strap Semi-auto Winder

Number of measurement modes: 2

Mode 1: Weight (kg)

Mode 2: Length (meter)

Switching method: Touchscreen selection

Pet Strap Semi-auto Winder Pneumatic Mandrels for Quick Bobbin Change

Number of pneumatic mandrels: 1 or 2 (matching mandrel count)

Core change time: <5 seconds

Operation method: Manual button / foot switch

Locking method: Inflation expansion

Adjustable Traverse 50–200 mm Pet Strap Semi-auto Winder

Traverse length range: 50–200 mm

Adjustment type: Infinitely variable

Adjustment interface: Touchscreen input

Mechanical part change needed: No

500 r/min Mandrel Rotation Speed PET Strap Semi-auto Winder

Maximum mandrel rotation speed: 500 r/min

Corresponding linear speed: 250 m/min

Bearing type: Precision rolling bearings

Speed regulation: Constant linear speed auto control
