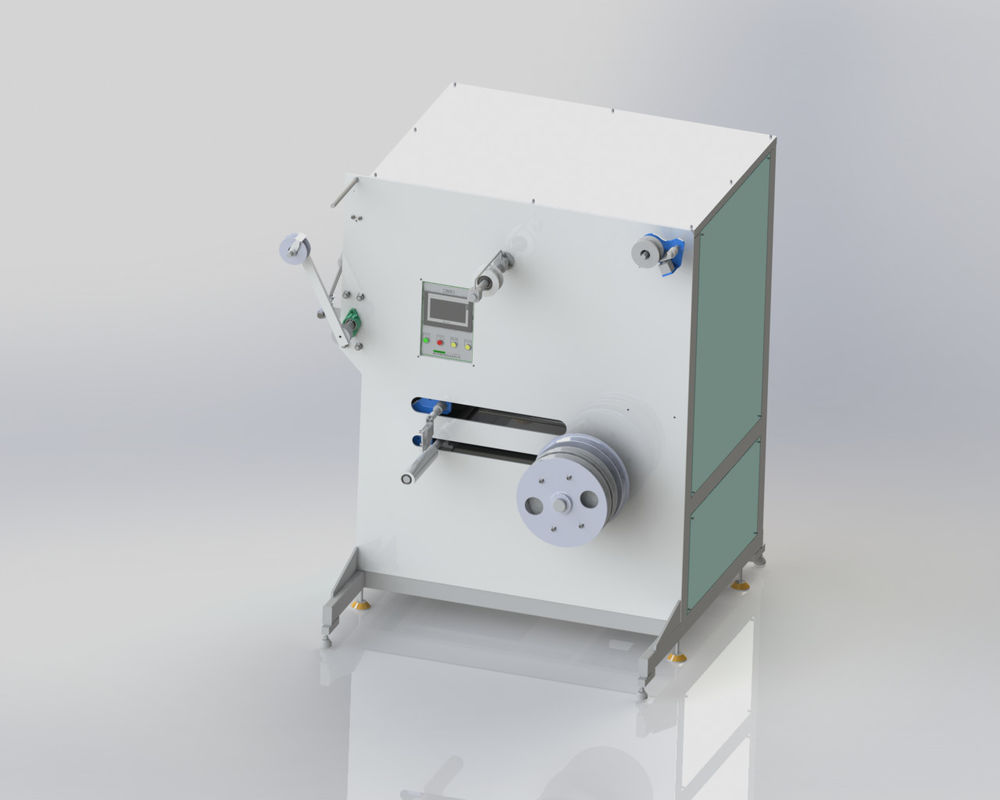

Ultra jumbo roll PET polyester strap semi-auto winder export

I'm Online Chat Now

Ultra jumbo roll PET polyester strap semi-auto winder export

Ultra jumbo roll PET polyester strap semi-auto winder export
Ultra jumbo roll PET polyester strap semi-auto winder export
Ultra jumbo roll PET polyester strap semi-auto winder export Ultra jumbo roll PET polyester strap semi-auto winder export

Large Image :  Ultra jumbo roll PET polyester strap semi-auto winder export

Product Details:
Place of Origin: China
Brand Name: CHUAQI
Model Number: CQ1200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD/RMB
Packaging Details: wood box
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 600 sets

Ultra jumbo roll PET polyester strap semi-auto winder export

Description
Keywords: Strap Winder Power Supply: 380V/50Hz
Winding Speed: 100-350m/min Application: PET Strap Winding
Function: Packing Strap Produce Usage: Winding PET Straps Onto Reels
Winding Core Diameter: 400mm Size: Adjustable
Motor: Dual Servo Motor Maximum Strap Width: 32mm
Core Components: PLC, Motor Voltage: 380v
Highlight:

PET polyester strap winder

,

Export PET Strap Winder

,

Export PET polyester strap winder

Ultra jumbo roll PET polyester strap semi-auto winder



The strap winder family is used for winding straps in parallel directly from the extruder. These machines come with one or two winding mandrels. Versions with two bobbin mandrels permit particularly fast manual bobbin swap.

The machines were designed for continuous operation. They wind 9 to 32 mm wide PET straps based on specific winding programmes. ChuanQi customises them based on specific customer specifications.



Facts and advantages

winding of PET strap from 9 to 32 mm, with an outer package diameter of up to 1250 mm

highest winding accuracy to process even waxed PET strap

with one or, optionally, two winding mandrels

central input terminal with recipe management

optional flanges for winding of waxed straps



Technical details

  CQ800 CQ1200
Number of Mandrels 1~2 1~2
Winding speed 50 – 250 m/min 50 – 250 m/min
Maximum pick up speed 350 m/min 350 m/min
Maximum mandrel rotation speed 500 m/min 500 m/min
Strap width 9~32mm 9~32mm
Traverse length 50~200mm 50~300mm
Mandrel diameter 400mm or add custom 400mm or customized
Maximum package diameter 820 mm 1250mm



Basic equipment

Dancer control for controlling of a constant strap tension and winding speed, Dual servo motor

Precise, electronically controlled 2 or 3 or spiral point laying with minimal strap bend of the straps

Pneumatic lamellar spreading mandrels for fast bobbin changes

Two measurement modes: weight and meter
