5 - 6rolls/Min Automatic Fabric Roll Packing Machine For Pillow Core Quilt

I'm Online Chat Now

5 - 6rolls/Min Automatic Fabric Roll Packing Machine For Pillow Core Quilt

5 - 6rolls/Min Automatic Fabric Roll Packing Machine For Pillow Core Quilt
5 - 6rolls/Min Automatic Fabric Roll Packing Machine For Pillow Core Quilt

Large Image :  5 - 6rolls/Min Automatic Fabric Roll Packing Machine For Pillow Core Quilt

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQ-AFR16/CQ-AFR19
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: FCL
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 100 sets

5 - 6rolls/Min Automatic Fabric Roll Packing Machine For Pillow Core Quilt

Description
Packing Method: Automatic Packing Material: PE Film
Usage: Quilt, Mattress, Sleeping Bag, Pillow Core, Etc Packing Speed: 5~6 Rolls/min
Keyword: Automatic Pillow Roll Packing Machine Function: Rolling, Inspection, Measure
Roll Diameter Range: 100-500mm Warranty: 1 Year
Highlight:

Pillow Core Fabric Roll Packing Machine

,

6rolls/Min Automatic Fabric Roll Packing Machine

,

Quilt Automatic Fabric Roll Packing Machine

Stable Automatic Fabric Roll Packing Machine For Pillow Core

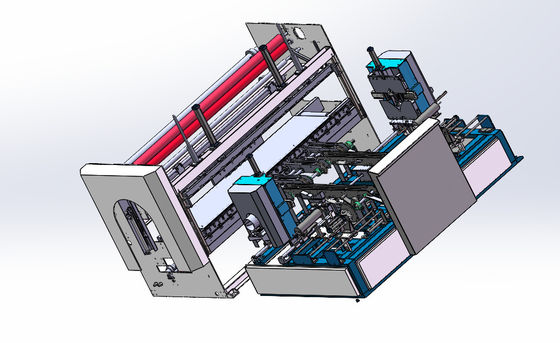

Brief Introduction of Automatic Fabric Roll Packing Machine



Automatic Fabric Roll Packing Machine executes a fully automated packaging workflow. It utilizes vacuum packaging technology to create a tight seal around each roll, protecting it from dust, dirt, and damage during transportation. Labels are automatically applied, including barcodes, product information, and branding details, for easy identification and tracking.





Benefits of an automatic fabric roll packing machine:

Automatic Fabric Roll Packing Machine stands out with its cutting-edge features that revolutionize the fabric packaging industry. Its fully automated process ensures that the entire packaging workflow is seamlessly executed, requiring only one operator to monitor and oversee the entire operation. This not only maximizes efficiency but also significantly boosts your return on investment (ROI) by minimizing labor costs and maximizing production output.

automatic fabric inspection capability:It employs advanced sensors and imaging technology to meticulously inspect each fabric roll for defects, ensuring that only high-quality rolls are packaged. This ensures customer satisfaction and maintains the brand's reputation for excellence.

The machine incorporates automatic vacuum packaging, which uses a vacuum pump to remove air from the packaging material, creating a tight seal around the fabric roll. This not only protects the fabric from dust and dirt but also prevents it from being crushed or damaged during transportation.



Functional Advantages:



this machine is used to roll and compress fluffy items such as clothing, blankets, towels, pillows,mattresses, cushions, pet mats, etc. It can reduce the volume, storage and transportation costs. Packaging bag material is not limited: plastic bags, non-woven bags, cloth bags, woven bags, paper waist seals, etc. can be packaged.



Automatic Textile Roll Packing Machine Models and Specifications:



Model CQ-AFR16 CQ-AFR19
Fabic Roll Information Width 1000~1600mm 1000~1950mm
Diameter 100~350mm 100~500mm
Weight 5~60kg 5~80kg
Capacity 5~6 rolls/min 4~5 rolls/min
Packaging film Material LDPE FILM LDPE FILM
Thickness 0.03~0.08mm 0.03~0.08mm
Power Source

AC380V

                3Phase

50/60HZ

12.6Kw/h

AC380V

                 3Phase

50/60HZ

14Kw/h

Air Source 5~7kg/cm² 5~7kg/cm²

Special specifications can be customized



Applicable Industries



Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company



FAQ
1. How long is the machine warranty? The machine warranty is one year, and the damaged parts are not in the range of warranty.
2. Will the machine test before delivery? Yes, before shipping, we will provide test videos and photos for customer.

3. How to deal with after -sales? We usually guide or video guidance.
4.What is the minimum quantity for order? No moq, no restriction
