Mattress Fabric Roll Packing Machine 6 Rolls/Min For Cloth Measuring
Feature of Automatic Fabric Roll Packing Machine

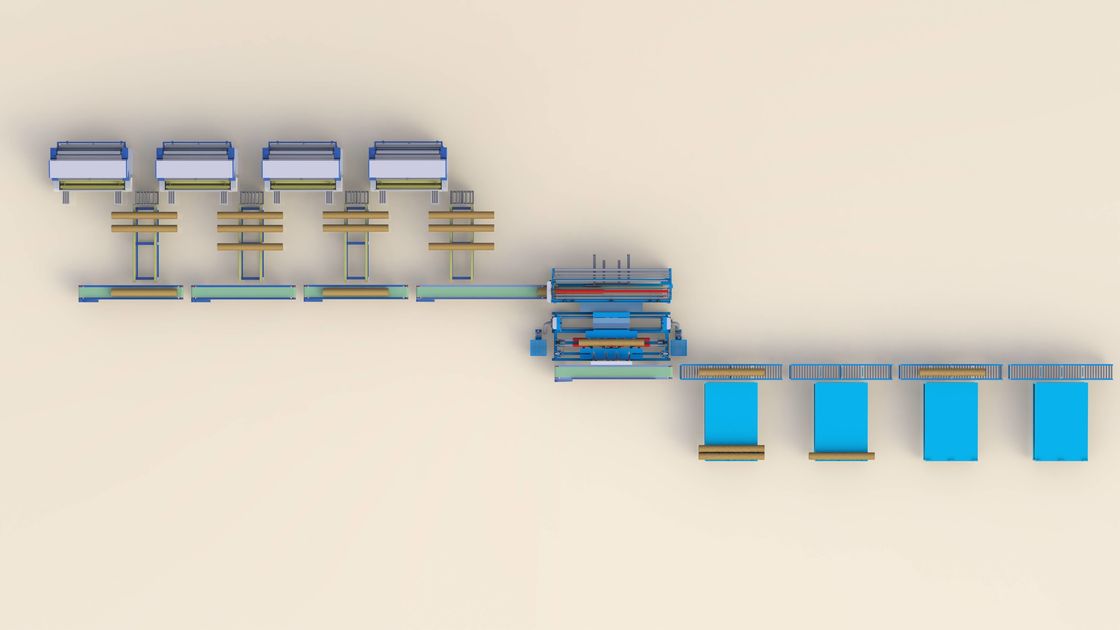

Intelligent Fabric Inspection with Automatic Packing System can be realized packing fabric from several Fabric Inspection machines of different cloth packaged and transferred to different zones respectively.
This type is designed for high-volume production and typically includes features like motorized conveyors and automated packing systems. It's ideal for large manufacturing plants and garment shops where efficiency is crucial.
- Optimizes investment returns by reducing manpower.
- Guarantees top-notch packaging quality and efficient handling.
- Shields packaging from moisture, dust, leaks, and pollution.
- Minimizes additional costs during transportation and storage.
- Motor-driven movement controlled by PLC, with self-induction system.
- Operation is straightforward, safe, stable, reliable, and durable.
The textile roll packing machine is suitable for a wide range of industries, including hotels, garment shops, building material stores, manufacturing plants, machinery repair shops, farms, restaurants, home use, retail stores, food shops, printing shops, construction works, energy and mining, food and beverage shops, as well as advertising companies.
Characteristics of Automatic Fabric Roll Packing Machine:
The fabric rolls loaded on the infeed conveyor will be wrapped in a 3-side sealed package, and then the package will be trasferred into a shrink tunnel and rapidly heat shrunk.Finally the package comes outs in a tight but soft shape.Package without shrinkage of PE film is also available in this type fabric roll packing machine.
Technical Parameter:
| Model |
CQF500 |
CQF350 |
| Packing speed |
4~5 rolls/min |
4~5 rolls/min |
| External size |
4500mm * width 3500mm* height 2300mm |
3600mm * width 2700mm* height 2000mm |
| Package roll size |
OD100mm-500mm; Width1000mm-1800mm |
OD100mm-350mm; Width1000mm-1600mm |
| Air pressure |
5~8 kgf |
5~8 kgf |
| PE film |
0.03~0.08mm |
0.03~0.08mm |
| Packaging technology |
Automatic cylinder and color separation packaging technology |
Automatic cylinder and color separation packaging technology |
Special specifications can be customized
Advantage of Automatic Fabric Roll Packing Machine:
The Automatic Fabric Roll Packing Machine offers numerous advantages. With only one operator required, it significantly reduces manpower needs. The vacuum packing technology ensures a tight seal, protecting the fabric rolls from dust and damage. Its efficiency is six times higher than traditional methods, resulting in a maximum 60% saving in labor costs. This machine is a must-have for any fabric manufacturing business looking to increase production efficiency and reduce operational costs.
The automated operation cycle can be programmed and monitored through microprocessor interface. This textile roll packing machine saves huge labour costs as well as packing time apart from convenience while loading trucks / containers when dispatched from mills.
Our Services:
We have our own automatic fabric roll wrapping machine production workshops, in addition to other stable machine cooperative factories, professional product technical support, and excellent sales service teams, we can provide customized products and OEM services. Our purpose "work together, abide by the original intention" We have always aimed at "high -quality, reasonable price, high -quality services" as the goal, so that our products were sold all over the world and were well received by friends from various countries. We will always adhere to our original intentions and move forward with our customers. If you have any suggestions and ideas, you can contact us at any time. We also sincerely welcome you to come to China and visit our company.
1. How long is the machine warranty? The machine warranty is one year, and the damaged parts are not in the range of warranty.
2. Will the machine test before delivery? Yes, before shipping, we will provide test videos and photos for customer.
3. How to deal with after -sales? We usually guide or video guidance.
4.What is the minimum quantity for order? No moq, no restriction
