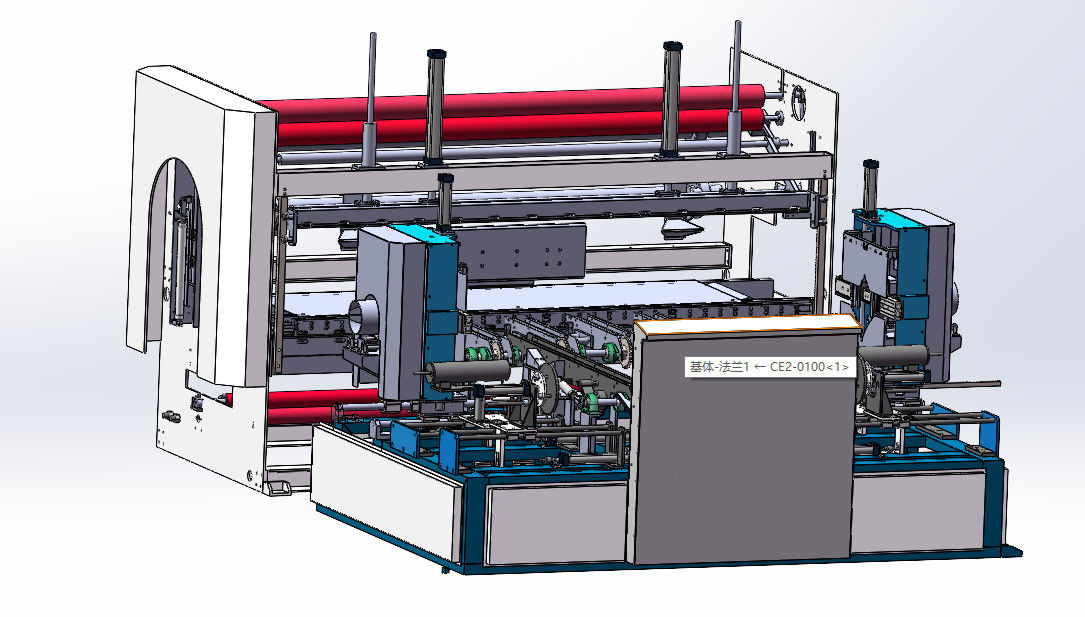

Intelligent Vacuum Automatic Fabric Roll Packing Machine PLC Control 380V 50Hz

Intelligent Vacuum Automatic Fabric Roll Packing Machine PLC Control 380V 50Hz
Intelligent Vacuum Automatic Fabric Roll Packing Machine PLC Control 380V 50Hz

Large Image :  Intelligent Vacuum Automatic Fabric Roll Packing Machine PLC Control 380V 50Hz

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQ-AFR16/CQ-AFR19
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: FCL
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 100 sets
Contact Now

Intelligent Vacuum Automatic Fabric Roll Packing Machine PLC Control 380V 50Hz

Description
Control System: PLC Packing Material: PE Film
Packing Method: Automatic Packing Speed: 5~6 Rolls/min
Packing Type: Vacuum Power Supply: 380V/50Hz
Roll Diameter Range: 100-500mm Warranty: 1 Year
Highlight:

Vacuum Automatic Fabric Roll Packing Machine

,

Automatic Fabric Roll Packing Machine 380V

,

Intelligent Automatic Fabric Rolling Machine

Intelligent Automatic Fabric Roll Packing Machine Vacuum Packing





Automatic Fabric Roll Packing Machine



Intelligent Fabric Inspection with Automatic Packing System can be realized packing fabric from several Fabric Inspection machines of different cloth packaged and transferred to different zones respectively.



Feature

Fully automated process, 1 operator Maximized your ROI!

Automatic Fabric Inspection

Automatic vacuum packaging

Automatic labeling

Automatic classification

Connection to ERP/MES systems

Optional robotic arm palletizing system

Multifunctionality all in one



Technical parameter:

Model CQ-AFR16 CQ-AFR19
Fabic Roll Information Width 1000~1600mm 1000~1950mm
Diameter 100~350mm 100~500mm
Weight 5~60kg 5~80kg
Capacity 5~6 rolls/min 4~5 rolls/min
Packaging film Material LDPE FILM LDPE FILM
Thickness 0.03~0.08mm 0.03~0.08mm
Power Source

AC380V

                3Phase

50/60HZ

12.6Kw/h

AC380V

                 3Phase

50/60HZ

14Kw/h
Air Source 5~7kg/cm² 5~7kg/cm²

Special specifications can be customized



Advantage

One Operator Only!
Vaccum Packing Effect!
6 Times Efficiency Improved!
Max.60% Labor Cost Saving!
