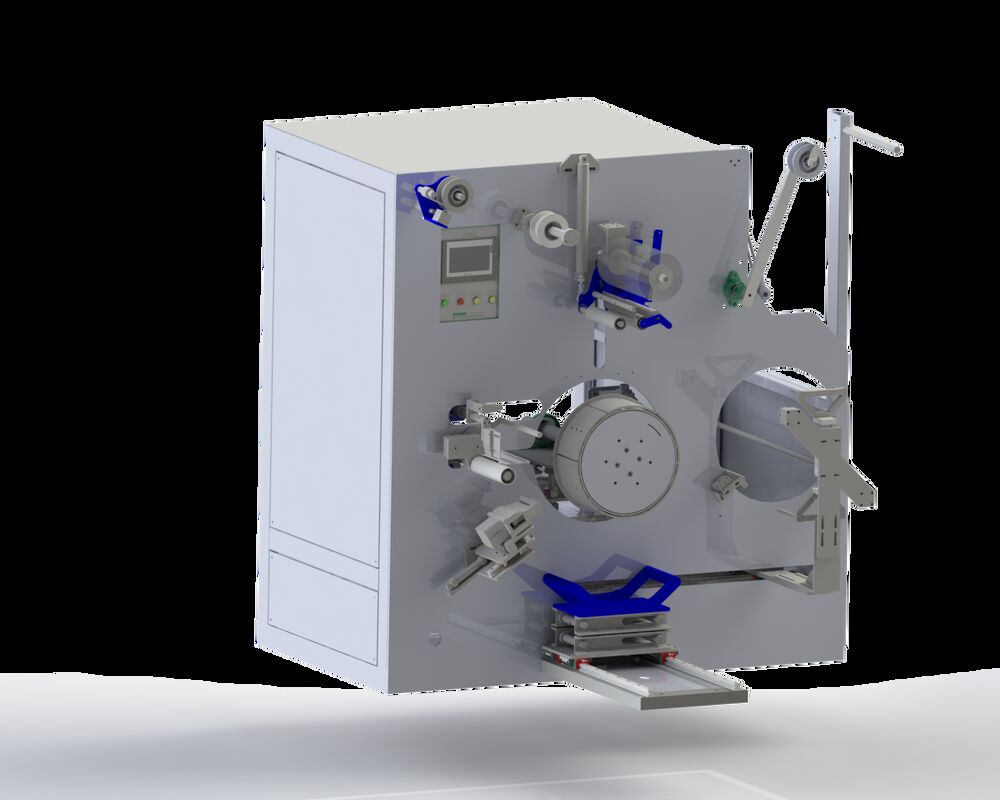

Automated PET Strap Winder CQA800

Abstract

The strap winder of the CQA800 was used for winding straps in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind pet straps with width of 9~32mm depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the integrated winder and removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continuous operation. The compact design permits use even in confined spaces.

Facts and advantages

1.Fully automatic PET strap winder for straps from 9 to 32 mm, with an outer package diameter of 820 mm

2.Conveyor system for automatic package transport

3.Film wrapping device for automatic package wrapping

4.Central input terminal with recipe management

5. Fully automatic winding can be achieved with or without paper core

Technical details

Basic equipment

1. Dancer control for controlling a constant strap tension and winding speed, Dual servo motor

2. Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps

3. Pneumatic lamella spreading mandrels for fast bobbin change

4. Sleeve magazine

5. Bobbin deposit

6. Automatic film dispenser

7. Two measurement modes: weight and meter
