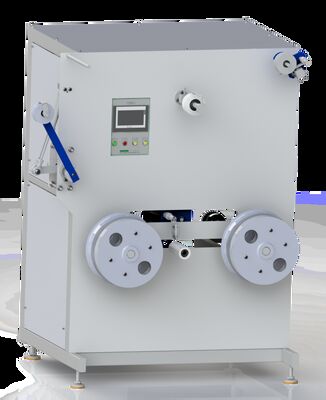

Pet Strap Semi-auto Winder CQ800

Abstract

The strap winder family is used for winding straps in parallel directly from the extruder. These machines come with one or two winding mandrels. Versions with two bobbin mandrels permit particularly fast manual bobbin swap.

The machines were designed for continuous operation. They wind 9 to 32 mm wide PET straps based on specific winding programmes. CHUQI customizes them based on specific customer specifications.

Facts and advantages

1. Winding of PET strap from 9 to 32 mm, with an outer package diameter of up to 820 mm

2. The highest winding accuracy to process even waxed PET strap

3. With one winding mandrel or two winding mandrels

4. Central input terminal with recipe management

5. Optional flanges for winding of waxed straps

Technical details

Basic equipment

1. Dancer control for controlling of a constant strap tension and winding speed, Dual servo motor

2. Precise, electronically controlled 2 or 3 or spiral point laying with minimal strap bend of the straps

3. Pneumatic mandrels for fast bobbin changes

4. Two measurement modes: weight and meter
