Automatic PET Strap Winder with 80kg Capacity, Dual Servo Motor, and Robotic Palletizing System

The CQA800F is designed for integration with PET strap production lines featuring one out of six or one out of eight configurations with robotic arm operation. This automated strap winder winds polyester PET straps directly from the extruder in parallel, creating coils up to 80KG each.

Once initiated with manual material application, the system operates independently and can be integrated into fully automated production plants. It accommodates PET straps with widths ranging from 9mm to 32mm depending on configuration.

When a winding package reaches the target circumference, it is automatically film-wrapped by the integrated wrapper and transferred via the transport system to the roller conveyor below. Simultaneously, a new winding tube is fed from the magazine, enabling continuous, fully automatic operation. The compact design allows installation in confined spaces.

• Fully automatic PET strap winder for straps from 9 to 32 mm, with outer package diameter of 820 mm
• Conveyor system for automatic package transport
• Film wrapping device for automatic package wrapping
• Central input terminal with recipe management
• Fully automatic winding with or without paper core

• Dancer control for constant strap tension and winding speed, dual servo motor
• Precise, electronically controlled 2 or 3 point laying with minimal strap bend
• Pneumatic lamella spreading mandrels for fast bobbin change
• Sleeve magazine
• Bobbin deposit
• Automatic film dispenser
• Two measurement modes: weight and meter

• Robot arm model: JZJ160A-270
• Speed: 40 seconds per roll

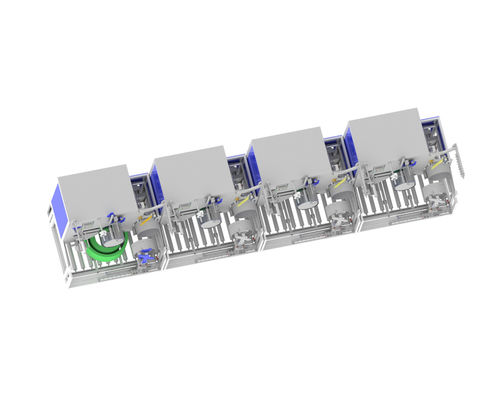

• One automatic palletizing system can service up to 2 sets of one out of 8 PET strap production lines
• Cardboard platform dimensions: 1240mm * 1240mm * 1500mm
• Positioning conveyor belt size: 3220mm * 1170mm * 680mm
• Robot arm base: 700mm * 700mm * 1000mm

The automated process involves the robotic arm grabbing finished products from the conveyor belt positioning area and placing them onto the pallet. When one layer is complete, the robotic arm picks up cardboard separators from the cardboard pallet and repeats the cycle until the finished product pallet is fully stacked.
