Automatic PET Strap Winding Machine with 80kg Capacity, Dual Servo Motor, and Palletizing System

Large Image : Automatic PET Strap Winding Machine with 80kg Capacity, Dual Servo Motor, and Palletizing System

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI
Model Number:	CQA800F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	FCL/LCL
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	300 sets

Contact Now

Automatic PET Strap Winding Machine with 80kg Capacity, Dual Servo Motor, and Palletizing System

Description

Width Range:	9-32mm	Inside Diameter Range:	250mm/400mm
Winding Tension:	Adjustable	Winding Capacity:	Up To 80kg
Strap Width:	9mm-32mm	Motor:	Dual Servo Motor
Configure:	Standard Or Customized	Packaging Type:	Wooden Box
Thickness:	0.5mm-1.3mm	Warranty:	1year
Highlight:	PET strap automatic winder MAX80KG , PET strap wrapper for palletizing system , heavy-duty PET strap winder with warranty

Automatic PET Strap Winding Machine with Palletizing & Cardboard Layering

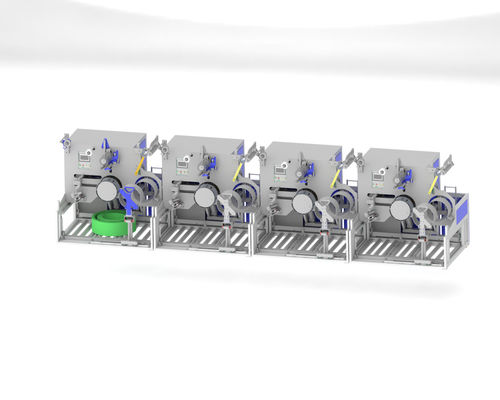

PET STRAP Automatic Winder/Wrapper - MAX 80KG per coil

Friendly used with automatic palletizing system

Automated PET Strap Winder CQA800F

CQA800F is suitable for one out of six, one out of eight PET strap production lines with robotic arm use. The strap winder is used for winding straps in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plants. They wind PET straps with width of 9~32mm depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the integrated winder and tipped by the integrated transport system from the winder down to the roller conveyor below. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continuous operation. The compact design permits use even in confined spaces.

Key Features and Advantages

Fully automatic PET strap winder for straps from 9 to 32 mm, with an outer package diameter of 820 mm
Conveyor system for automatic package transport
Film wrapping device for automatic package wrapping
Central input terminal with recipe management
Fully automatic winding can be achieved with or without paper core

Technical Specifications

Specification	CQA800F
Winding speed	50 - 250 m/min
Maximum pick up speed	350 m/min
Maximum mandrel rotation speed	500 m/min
Strap width	9~32mm
Traverse length	50~200mm
Mandrel diameter	406mm or customized
Maximum package diameter	820 mm

Standard Equipment

Dancer control for controlling constant strap tension and winding speed, Dual servo motor
Precise, electronically controlled 2 or 3 point laying with minimal strap bend
Pneumatic lamella spreading mandrels for fast bobbin change
Sleeve magazine
Bobbin deposit
Automatic film dispenser
Two measurement modes: weight and meter

PET Strap Automatic Palletizing System

Palletizing Program Specifications

Program A: Strap OD 600MM, height 150MM, weight 20KG, 1 layer of 4, separated by cardboard, up to 12 layers.

Program B: Strap O.D. 800MM, height 190MM, weight 75KG, 1 layer of 2, cardboard separated, up to 7 layers.

System Components

Robot arm model: JZJ160A-270
Speed: 40 seconds per roll
One automatic palletizing system can match up to 2 sets of one out 8 PET strap production lines
Cardboard platform dimensions: length 1240mm * width 1240mm * height 1500mm
Positioning conveyor belt size: length 3220mm * width 1170mm * height 680mm
Robot arm base: length 700mm * width 700mm * height 1000mm

After the finished product arrives at the positioning position of the conveyor belt, the robotic arm grabs the finished product onto the pallet until one layer is full. The robotic arm then picks up the cardboard finished product pallet from the cardboard pallet and repeats the action until the finished product pallet is stacked.
