PET polyester strap winder working with robot arm

PET polyester strap winder working with robot arm

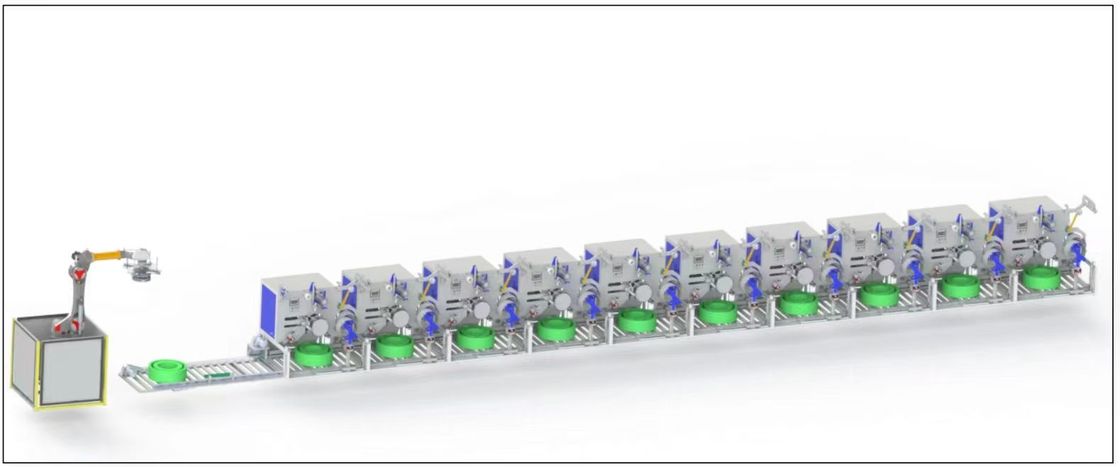

CQA800F suitable for one out of six, one out of eight PET strap production line with robotic arm use.

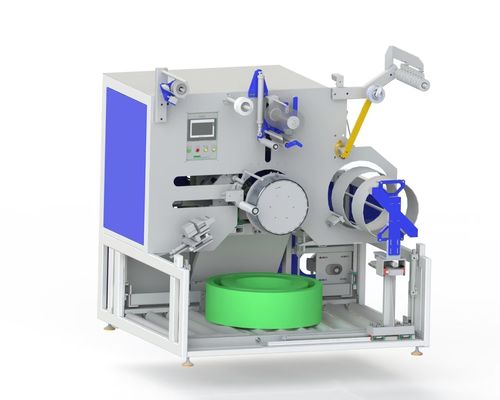

The strap winder of the CQA800F was used for winding straps in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind pet straps

With width of 9~32mm depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the intergrated winder and tipped by the integrated transport system from the winder down to the roller conveyor below. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continous operation. The compact design permits use even in confined spaces.

Facts and advantages

fully automatic PET strap winder for straps from 9 to 32 mm, with an outer package diameter of 820 mm

conveyor system for automatic package transport

film wrapping device for automatic package wrapping

central input terminal with recipe management

Fully automatic winding can be achieved with or without paper core

Basic equipment

Dancer control for controlling a constant strap tension and winding speed, Dual servo motor

Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps

Pneumatic lamella spreading mandrels for fast bobbin change

Sleeve magazine

Bobbin deposit

Automatic film dispenser

Two measurement modes: weight and meter

Default Main configuration

1) Motor: Wuxi Xinjie main motor 1.5KW, speed ratio: 1:8, servo motor,

Wuxi Xinjie Traverse motor: 400W servo motor

2) PLC: Wuxi Xinjie Touch screen: Wuxi Xinjie Contactor: Schneider

3) Pneumatic components: solenoid valve and pressure gauge: Taiwan Yadeke, cylinder: Donghao Pneumatic (Wenzhou)

4)Sensors and proximity on/off lights: Korea Alto Nicks
