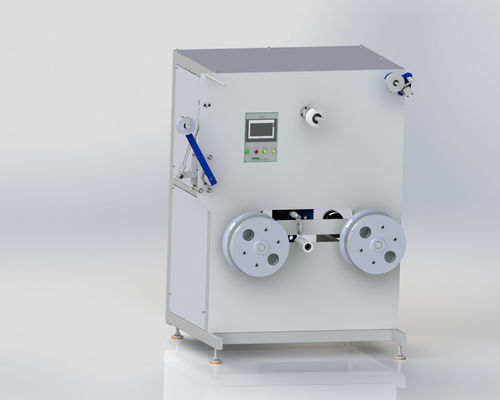

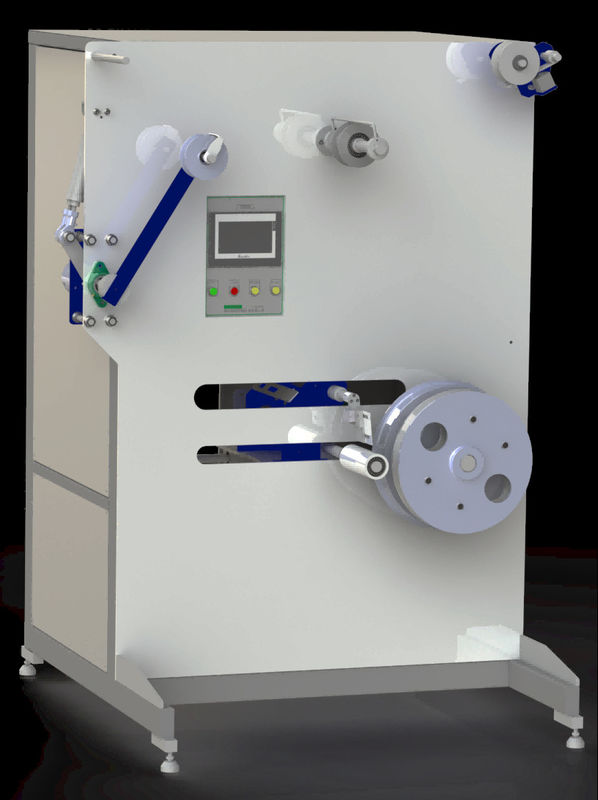

Semi Automatic PET Strapping Winder Plastic Extrusion With Dual Servo Motor

Semi Automatic PET Strap Winder Plastic Extrusion With Dual Servo Motor

Abstract

  The strap winder family is used for winding straps in parallel directly from the extruder. These machines come with one or two winding mandrels. Versions with two bobbin mandrels permit particularly fast manual bobbin swap.

  The machines were designed for continuous operation. They wind 9 to 32 mm wide PET straps based on specific winding programmes. ChuanQi customises them based on specific customer specifications.

• Product Name: PET Strap Winder
  • Material: PET Strap
  • Winding Tension: Adjustable
  • Power Consumption: 1.5kW
• Safety Features:
  • Emergency Stop Button
  • Overload Protection
• Power Supply:
  • Voltage: 220V
  • Frequency: 50Hz

Technical details

Facts and advantages

1. Winding of PET strap from 9 to 32 mm, with an outer package diameter of up to 820 mm
2. Highest winding accuracy to process even waxed PET strap
3. With one or, optionally, two winding mandrels
4. Central input terminal with recipe management
5. Optional flanges for winding of waxed straps

Basic equipment

1. Dancer control for controlling of a constant strap tension and winding speed, Dual servo motor
2. Precise, electronically controlled 2 or 3 or spiral point laying with minimal strap bend of the straps
3. Pneumatic mandrels for fast bobbin changes
4. Two measurement modes: weight and meter

Packing and Shipping:

  The PET Strap Winder product is carefully packaged to ensure its integrity during transportation. The winder is enclosed in a sturdy, corrugated cardboard box that provides ample protection against impacts and vibrations. The box is sealed with heavy-duty packing tape and labeled with all necessary shipping information, including a fragile warning to handle with care.

  Inside the box, the PET Strap Winder is secured with foam padding or bubble wrap, minimizing movement and providing additional cushioning. All accessories and components are individually wrapped and placed to prevent scratches or damage. A packing slip with the itemized list of contents is included for easy verification upon receipt.

  Before shipping, the package undergoes a final inspection to ensure that it meets our high standards for quality and safety. The PET Strap Winder is then dispatched through a reliable delivery service with tracking capabilities, so you can monitor your shipment's progress until it arrives safely at your destination.

FAQ

Q1: Minimum inside and Max outside diameter of the roll?

A1: Min inner normal 406mm or customized Max outer dia. 820mm

Q2: Warranty period?

A2: 1 Year Warranty

Q3: Developed and manufactured in-house?

A3: Yes, We have our own R&D and manufacturing, with patents and drawings for all parts and circuits.

Q4: Maturity of equipment?

A4: Developed and marketed for more than 10 years, during which time it has been continuously optimized.
