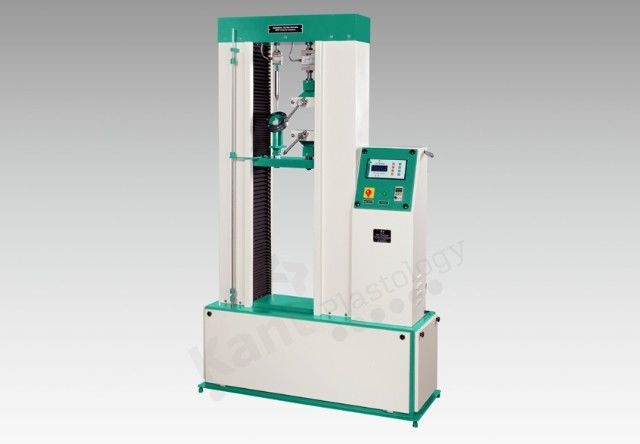

Application of Tensile Strength Tester
Computer Control Electronic Laboratory Universal Tensile Testing Machine is mainly used for testing mechanical performance indexes of various metals, nonmetals and composite materials such as stretching, compression, bending, shearing, peeling, tearing, etc.
The equipment is suitable for manufacturing industries such as metals,adhesives,pipes,profiles,aerospace,petrochemical industry,waterproof coiled materials,wires and cables,textiles,fibers,rubber,ceramics,food,medical packaging,geotextiles,films,wood,paper and other manufacturing industries as well as product quality supervision departments at all levels.
Features of Tensile Strength Tester
1. Accurate detect device, servo closed loop control systerm.
2. Many kind of comparison principle and test methods.
3. Automatic return to "start" position for easy sample changing.
4. Rugged build for repetitive testing.
5. Wide range of grips available.
6. Adopting windows platform,and all parameter settings can be processed in dialog box
7. English interface or other language can be customized.
8. The pattern of test reports can be self-designated.Test data can be displayed directly in the main screen.
9. Choosing translational,comparative mode at the same time to make a number o curve data comparison.
10. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
11.With the user-defined test methods,with experimental data analysis function;
|
Model
|
20kN tensile testing equipment
|
|
Maximum load
|
2kN,5kN,10kN,20kN (optional)
|
|
Accurate
|
1 grade
|
|
Measuring accuracy
|
the value ±1% / the value±0.5%
|
|
Tester resolution
|
Max load 1/100000, constant the resolution
|
|
Effective testing width
|
400mm (or can be widened as customers requirement )
|
|
Effective tensile space
|
650,800,1000mm (or can be increased the height according to customers requirement)
|
|
Testing speed
|
From 0.5 to 1000mm/min
|
|
Unit
|
kgf, gf, lbf, N, kN, Mpa, pa(optional)
|
|
Data sampling rate
|
50 times/second
|
|
Accruacy of displacement measurement
|
Tolerance: ±0.5%
|
|
Accuracy of measured deformation
|
Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)
|
|
Safety
|
Electronic-limit protection
|
Electrical measurement and control system:
1. With protect function of overload,over current, over voltage, displacement limit,
emergency stop, etc .
2. The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3. When finished testing, automatic stop.
4. Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse
happen (PWM), and other functions in one
5. Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
Our Services
-- 24 Hours online service for your consult
-- Help choose right model with series of service,person, and adviece
-- Give you best offer
-- Provide favourable discount
-- Meet your demand
-- 1-year warranty service
-- Technical Egineer are avalible for oversea trainning
FAQ
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
