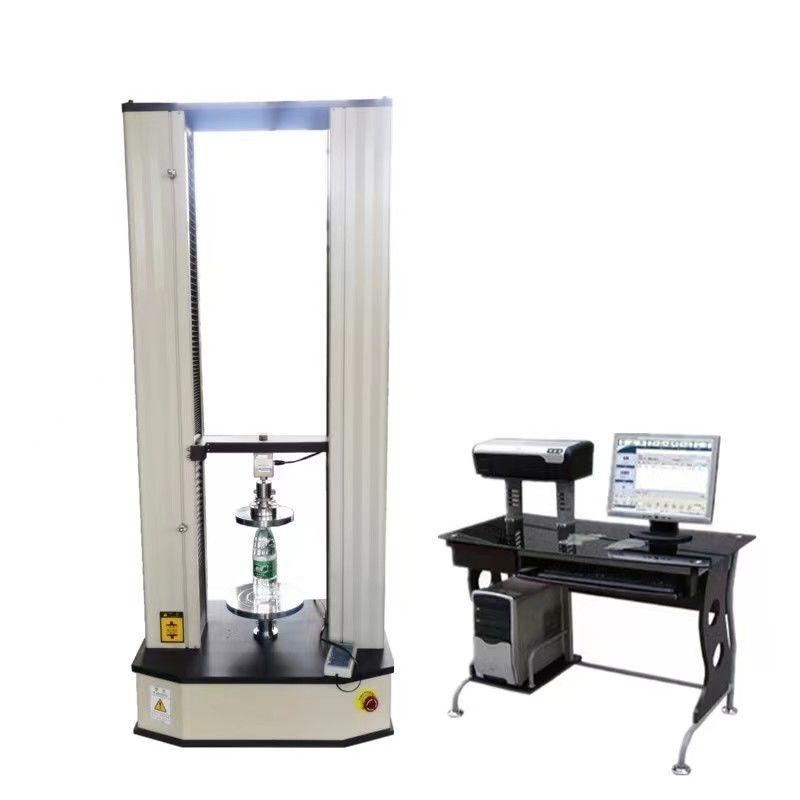

PP PET Strapping Belt Tensile Strength Testing Equipment 100N - 20kN

strapping belt Tensile Testing Machine

I. Product use:

strapping belt tensile testing machine is mainly applied to a variety of non-metallic materials and metal materials for tensile, compression, bending, tearing, peeling, shear and other mechanical properties test.

Two. Applicable standards: GB / T, ASTM, DIN, JIS, BS and other test standards

III. Performance characteristics:

A. Adopting high-precision force transmitting sensor, which has the advantages of high precision and good linearity.

B. The power system adopts stepping motor + driver + ball screw + synchronous belt drive, smooth running, no noise.

C. The data transmission mode is USB transmission, convenient and quick.

D. Test software can realize a variety of control modes to meet different test requirements.

E. Safety specialization, with overload automatic protection and shutdown, up and down travel limit protection and shutdown, power leakage automatic power-off protection.

F. . Dual report editing, built-in EXCEL fully open-ended reports for testers to choose their preferred report format.

G. Each length, force unit using interchangeable way, force unit T, Kg, N, KN, g, lb, deformation unit mm, cm, inch.

H. The end of the test is automatically archived, and according to the test requirements are automatically derived from the force, yield strength, tensile strength, modulus of elasticity, elongation, bending modulus and other data.

I. With more than 10 kinds of language switching function.

IV. Technical parameters

A. Sensor range: 100N-20kN interval optional

B. Test force resolution: 1/300000

C. Test force error: ± 0.5%

D. Large deformation error: ± 1 percent

E. Displacement rate range: 15-500mm/min

F. Test space: 900mm (including the clamp)

G. Test width: 350mm

H. Power supply: 220V / 50HZ.

I. Power: 400W

J. Machine size: 540×900×1600 mm L×W×H.

K. Machine weight: about 280 kg.
