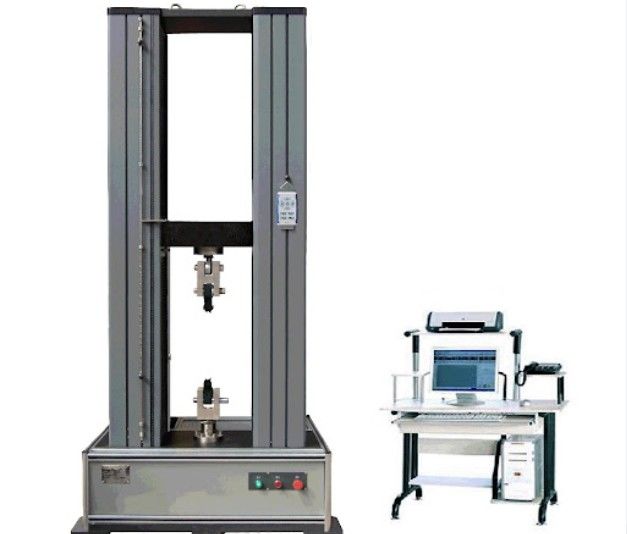

Steel Universal Tensile Strength Test Machine Dynamic Load Electronic Control
Applicable Industries of Tensile Strength Test Machine:
Use Manual Tensile Strength Tester Price can test various materials (both finished and semi-finished products ) of tensile
strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
Parts Of Universal Testing Machine,Tensile Compression Testing Machine,Universal Testing Equipment is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.
Features of Tensile Strength Test Machine:
Computer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
- Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control
- Modern linear guide technology, pre-loaded ball screws and advanced software.
- Aluminum Alloy Cover make machine looks beautiful .
- Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells
- required to cover the full force range.
- Built-in of test methods meeting international test standards.
- Pre-load test standards for ASTM standard and ISO standard for foam test
- All test procedure is carried out easily with our professional software
- Test automation and batch testing
- Test creation is provided by software
- Multi points load is calibrated to ensure calibration is accurate
Technical Parameters of Tensile Testing Machine:
| Capacity |
kg |
2000 |
1000 |
500 |
200 |
100 |
| Accuracy |
High precision |
0.5 level , ±0.5%, |
| Load sensing |
High precision tension and pressure transducer,(multiple sensors can be installed at the same time - optional) |
| High resolution |
1/500000 |
| Magnification |
24digit AD No period of zoom |
| Unit choose |
N, KN, Kgf, Lbf |
| Test speed range |
Servo : 0.5~500 mm/min can set |
| Speed control accuracy |
±0.2% (0.5level ) |
| Test effective width |
400 mm |
| Test effective stroke |
700 mm |
| Two column height |
1400 mm |
| Overload setting protection function |
When the set test force exceeds 10%, the system will automatically stop for protection |
| Protection function of stroke setting |
Protection for upper and lower limit position of stroke |
FAQ:
Q: What's the material of machine?
A: Cast iron, stainless steel
Q: Do you accept customization service?
A: Yes, we accept non-standard customized testing apparatus.
Q: What's the production time?
A: In general, the delivery time will be about 45-55 working days after deposit receipt. If you're in urgent need, we could try to produce your order in advance.
Q: What's the warranty and after sales service?
A: Our warranty is one year. Within warranty, after sales service is for free. For after sales service, we will dispatch our engineer for commissioning at customer's place. The air tickets and accommodations are covered by our customer. Besides, we offer commissioning by video guidance.
Q: What's the Packaging?
A: Usually, all the machines are packed by wooden case. For small machines and components, it is packed by carton.
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
