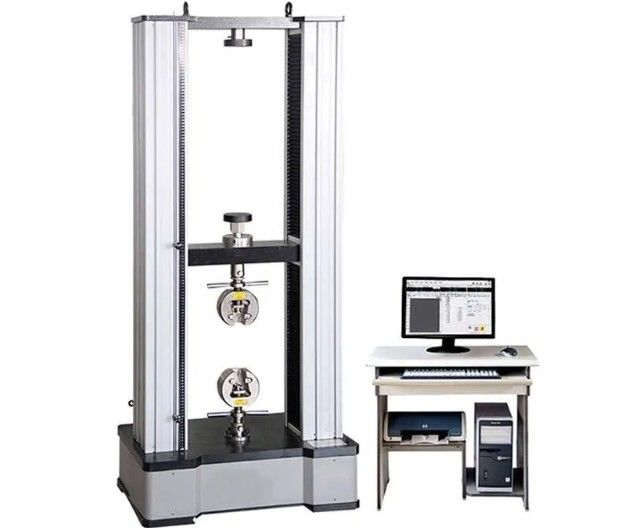

Compressive Bending Strength Tensile Testing Machine 20kN Computerized
Application of tensile testing equipment
Tensile testing equipment mainly applied to test the metallic and non-metallic materials in tension, compression, bending,
shear,peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe
belt,leather belt composite materials, plastic profiles, waterproof membrane, steel, copper,profiles, spring steel, bearing
steel,stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.
Applicable industry:
Tensile testing equipment widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel;
manufacturingmachinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs;instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory;inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.
Features of tensile testing equipment
1. Accurate detect device, servo closed loop control systerm.
2. Many kind of comparison principle and test methods.
3. Automatic return to "start" position for easy sample changing.
4. Rugged build for repetitive testing.
5. Wide range of grips available.
6. Adopting windows platform,and all parameter settings can be processed in dialog box
7. English interface or other language can be customized.
8. The pattern of test reports can be self-designated.Test data can be displayed directly in the main screen.
9. Choosing translational,comparative mode at the same time to make a number o curve data comparison.
10. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
11.With the user-defined test methods,with experimental data analysis function;
|
Model
|
20kN tensile testing equipment
|
|
Maximum load
|
2kN,5kN,10kN,20kN (optional)
|
|
Accurate
|
1 grade
|
|
Measuring accuracy
|
the value ±1% / the value±0.5%
|
|
Tester resolution
|
Max load 1/100000, constant the resolution
|
|
Effective testing width
|
400mm (or can be widened as customers requirement )
|
|
Effective tensile space
|
650,800,1000mm (or can be increased the height according to customers requirement)
|
|
Testing speed
|
From 0.5 to 1000mm/min
|
|
Unit
|
kgf, gf, lbf, N, kN, Mpa, pa(optional)
|
|
Data sampling rate
|
50 times/second
|
|
Accruacy of displacement measurement
|
Tolerance: ±0.5%
|
|
Accuracy of measured deformation
|
Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)
|
|
Safety
|
Electronic-limit protection
|
Electrical measurement and control system:
1. With protect function of overload,over current, over voltage, displacement limit,
emergency stop, etc .
2. The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3. When finished testing, automatic stop.
4. Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse
happen (PWM), and other functions in one
5. Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
