Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping

I'm Online Chat Now

Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping

Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping
Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping

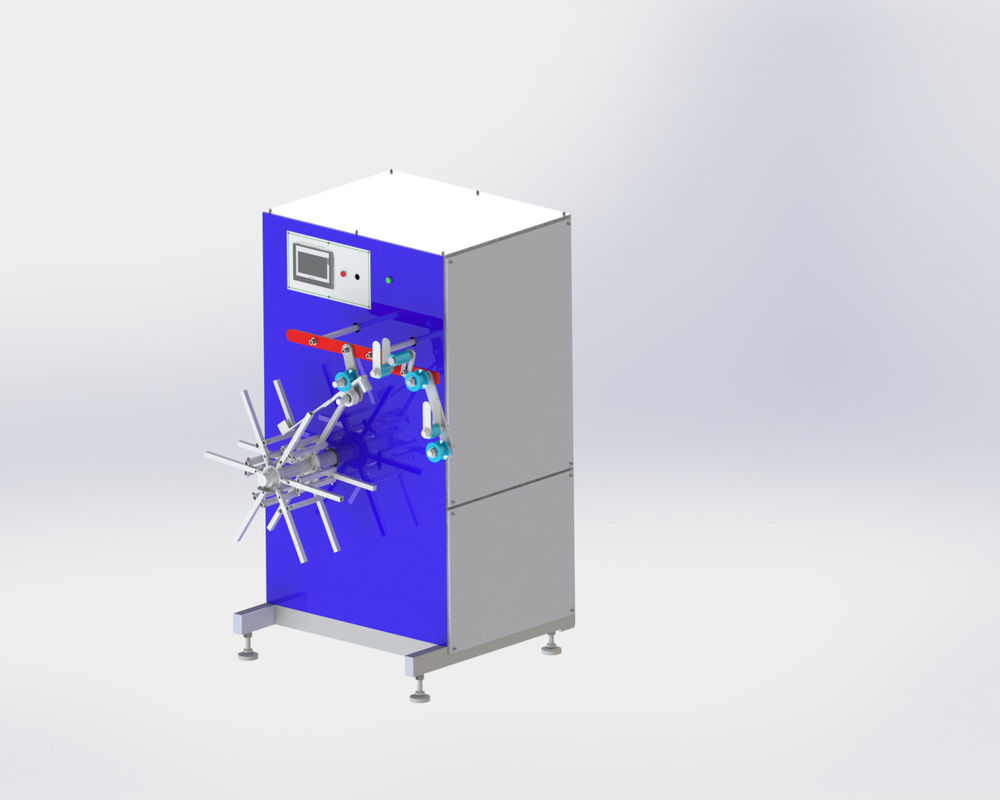

Large Image :  Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: FCL
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 100 sets

Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping

Description
Product Name: Tube Winder Closing Speed: 0-150m / Min
Key Selling Points: Easy To Operate Applicable Industries: Manufacturing Plant
Keywords: Automatic Cable Coiling Machine Automatic: Full-automatic
Highlight:

Rubber Tube Winder

,

Compact Hose Winding Machine

,

Automatic Strapping Tube Winder

Compact Hose Winding Machine Rubber Tube Winder With Automatic Strapping



Main Feature of Rubber Plastic Pipe Winder





* Automatically shut down when wire broken or empty.
* Automatically shut down when preset winding no., guarantee every bobbin has equal wire capacity.
* Control panel is fixed on the left of the machine. The bearing box and potention meter control the speed of winding wire.
* Automatically shut down when broken or empty, the machine have self-brake device.
* Press line disc pneumatic press tight, winding wire not quit wire, not release wire.



This machine is mainly used for winding and packaging of aluminum-plastic composite pipes, cross-linked composite pipes and other plastic hoses.
The machine adopts automatic winding technology and supports adjusting the winding speed and winding method.
Equipped with two discs to achieve continuous winding operations.
It adopts pneumatic operation mode, and the rim part of the winding wheel adopts pneumatic opening and closing design.
Equipped with a ray-type winding frame, which can automatically adjust the winding displacement to ensure orderly winding.
The machine has a compact structure and a high degree of automation.
Beautiful appearance and convenient operation.



Specification



item

value

Maximum unwinding outer diameter (mm)

1100mm

Specification of rewinding pipe

16- 32mm

Roll core diameter (mm)

350mm-400mm

Volume width (mm)

300mm (customizable)

Overall dimension (mm)

2300mm * 600mm * 1400mm

Curled length

300m

Closing speed

0-150m / min

Used voltage

380V / 50Hz



Product packaging



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

We have various size and type machine for your choice according to your specific work needs.

Just feel free to contact us, tell us your work needs.



FAQ



Are you manufacture?

Yes. We are one of leading manufacturers
Do you have Stock productions to sell?
Yes, of course. But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b).The application for your products.
c).Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times
