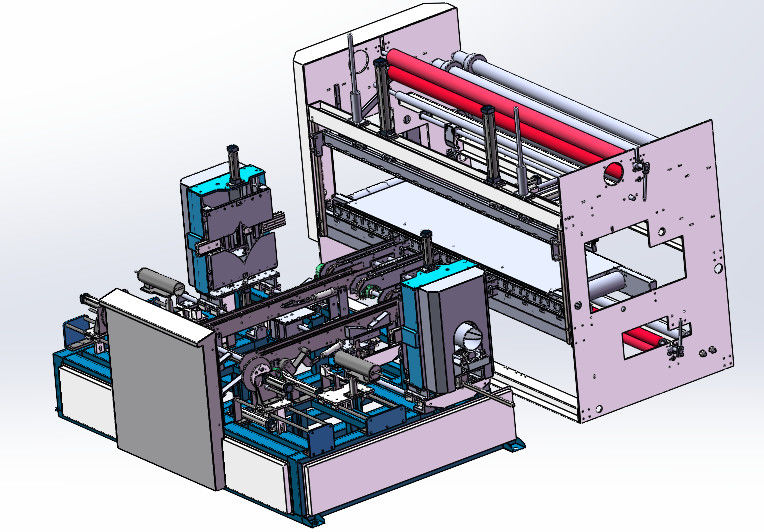

Multifunctional Fabric Roll Packing Machine Auto PE Film Wrapping Machine

Multifunctional Automatic Fabric Roll Packing Machine Auto PE Film Wrapping Machine

Advantages of Automatic Fabric Roll Packing Machine

Intelligent Fabric Inspection with Automatic Packing System can be realized packing fabric from several Fabric Inspection machines of different cloth packaged and transferred to different zones respectively.

Features and Benefits of Automatic Fabric Roll Packing Machine:

1. Increased Efficiency: By automating the packing process, the machine significantly reduces the time and labor required to package fabric rolls. This allows for faster turnaround times and increased production output.
2. Improved Accuracy: The machine uses precision mechanisms to accurately position and apply packaging materials, ensuring that each fabric roll is packaged consistently and correctly.
3. Reduced Errors: Automation eliminates the need for manual handling, which can lead to errors such as mislabeling or improper packaging. This helps to maintain high-quality standards and reduce the risk of returns or complaints.
4. Cost Savings: While the initial investment in an automatic fabric roll packing machine may be substantial, it can pay off in the long run through reduced labor costs and increased production efficiency.
5. Versatility: Some advanced models can be configured to handle different sizes and types of fabric rolls, allowing for greater flexibility in production.

Parameter of Fabric Roll Packing Machine:

Model CQ-AFR16

• Fabic Roll Information:
  • Width: 1000~1600mm
  • Diameter: 100~350mm
  • Weight: 5~60kg
• Capacity: 5~6 rolls/min
• Packaging film:
  • Material: LDPE FILM
  • Thickness: 0.03~0.08mm
• Power Source:
  • AC380V
  • 3Phase
  • 50/60HZ
  • 12.6Kw/h
• Air Source: 5~7kg/cm²

Model CQ-AFR19

• Fabic Roll Information:
  • Width: 1000~1950mm
  • Diameter: 100~500mm
  • Weight: 5~80kg
• Capacity: 4~5 rolls/min
• Packaging film:
  • Material: LDPE FILM
  • Thickness: 0.03~0.08mm
• Power Source:
  • AC380V
  • 3Phase
  • 50/60HZ
  • 14Kw/h
• Air Source: 5~7kg/cm²

Special specifications can be customized
