Micro Spray Tape Plastic Spraying Automatic Winder Servo Motor

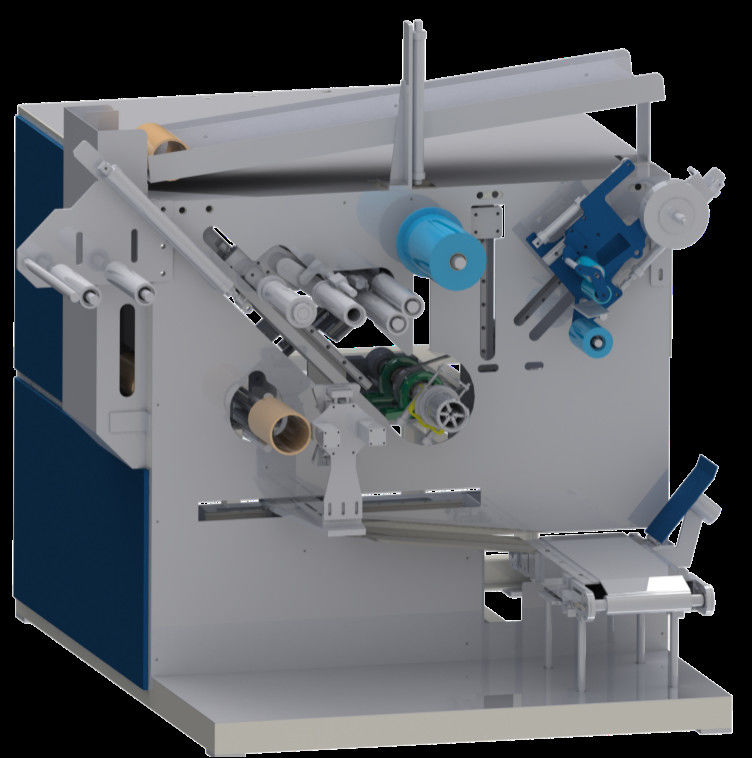

Micro spray tape automatic winder

Micro spray tape automatic winder of the CQA135M/355M was used for winding tapes in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind micro spray tape

with width of 1~3.5 inch/3.5~5 inch depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the intergrated winder and removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continous operation. The compact design permits use even in confined spaces.

Technical Parameters

Facts and advantages

fully automatic micro spray tape winder for tapes from 1 to 3.5 inch/3.5~5 inch, with an outer package diameter of 700 mm

conveyor system for automatic package transport

film wrapping device for automatic package wrapping

central input terminal with recipe management

Basic equipment

Torque control for constant tension winding

Pneumatic lamella spreading mandrels for fast bobbin change

Sleeve magazine

Bobbin deposit

Automatic film dispenser

Measurement modes: meter

FAQ

A: Minimum inside and Max outside diameter of the roll?

B: Min inner dia. 75mm Max outside dia. 700mm

A: Warranty period?

B: 1 Year Warranty

A: Developed and manufactured in-house?

B: Yes, We have our own R&D and manufacturing, with patents and drawings for all parts and circuits.

A: Maturity of equipment?

B: Developed and marketed for more than 5 years, during which time it has been continuously optimized.
