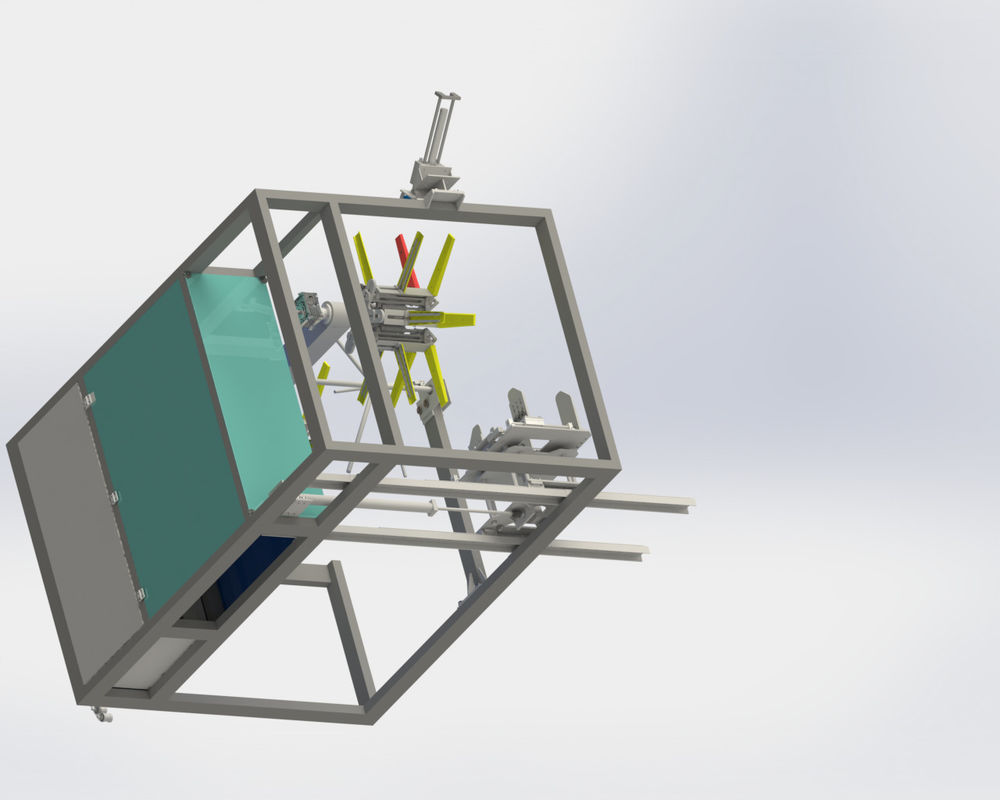

Single / Double Plastic Pipe Winding Machine Flexible Operation

Flexible Operation Single Double Plastic Pipe Winder

Application of Single Double Plastic Pipe Winder:

  Flexible operation Single double plastic pipe winder/coiling machine/wire coiling machine is mainly used in winding-up and packing of aluminium-plastic compound pipe cross-linking compound pipe and other plastic soft pipes. It automatically adjusts winding speed and winding methord. It has two disk for continious winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equipped with a ray creel stand to automatically wind displacement. It reaches winding up orderly.        The machine structure is compact. Its automatication is high. Its appearance is beautiful and its opration is conenient.

Introduction to Single Double Plastic Pipe Winder

   The single double plastic pipe winder of the CQA135M/355M streamlines the parallel winding process directly from the extruder.

  Following manual material application, the systems function independently and seamlessly integrate into an overall fully automated production plant. They excel at winding micro spray tape with widths ranging 1 - 3.5 inches or 3.5 - 5 inches, depending on the setup.

  Once a winding package achieves the desired circumference, it undergoes film wrapping via the integrated winder and is subsequently extracted from the line by the integrated transport system. Concurrently, a new winding tube is supplied from the magazine, ensuring uninterrupted automatic winding of the subsequent package.

  Developed for continuous operation, these machines boast a compact design, facilitating their utilization even in confined spaces.

Technical Parameters

Advantages of Plastic Pipe Winding Machine:

1. Automation: The machine offers fully automatic operation, reducing the need for manual intervention and saving labor costs.
2. Versatility: It is suitable for a wide range of pipe diameters, offering flexibility in production.
3. Ease of Operation: Plastic pipe winding machines are designed to be user-friendly, making them accessible even to operators unfamiliar with similar equipment.
4. Maintenance: These machines are easy to maintain, requiring minimal upkeep and ensuring consistent performance.
5. Quality Control: By maintaining consistent winding tension and alignment, these machines ensure high-quality winding, reducing the risk of defects in the final product.
6. Space Optimization: Many plastic pipe winding machines feature a compact design, allowing for efficient use of space in production facilities.
7. Integration: These machines can be seamlessly integrated into existing production lines, enhancing overall workflow and productivity.
8. Durability: Constructed from robust materials, plastic pipe winding machines are durable and built to withstand the demands of continuous operation.

FAQ

Q1: Minimum inside and Max outside diameter of the roll?

A1: Min inner dia. 75mm Max outside dia. 700mm

Q2: Warranty period?

A2: 1 Year Warranty

Q3: Developed and manufactured in-house?

A3: Yes, We have our own R&D and manufacturing, with patents and drawings for all parts and circuits.

Q4: Maturity of equipment?

A4: Developed and marketed for more than 5 years, during which time it has been continuously optimized.
