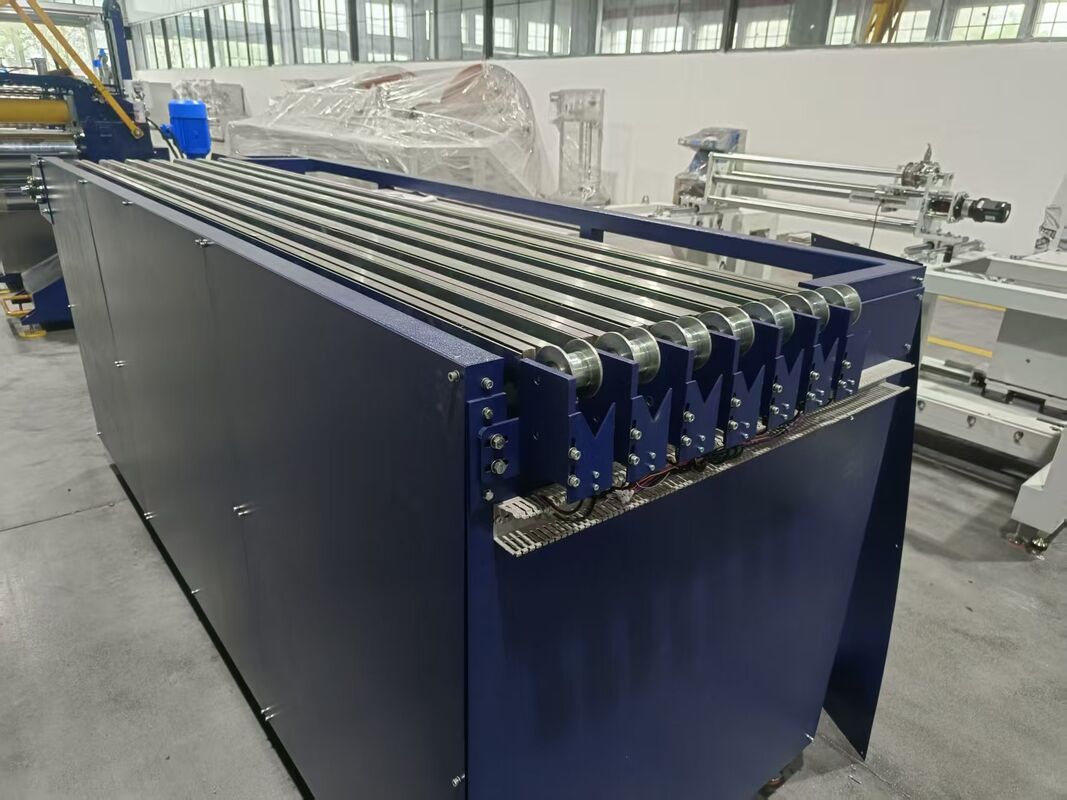

Thick 100mm Insulation on Oven & Box – Eco PP Strapping Extrusion Line

In continuous high-speed production, the energy consumption of heating units accounts for a significant portion of total line power. This production line features 100mm thick high-efficiency insulation on both the sizing oven and the extension box - a robust design rarely seen in comparable equipment.

This design greatly reduces heat loss to the external environment, significantly improving the thermal insulation performance of the oven and extension box. Actual measurements show that 100mm insulation can reduce heating energy consumption by about 20-30%, while also minimizing internal temperature fluctuations for more stable control.

Over long-term operation, the electricity savings are substantial - a classic "invest once, benefit long-term" energy-saving design.

• Sizing oven insulation thickness: 100mm
• Extension box insulation thickness: 100mm
• Insulation material: High-density fiberglass or rock wool
• Outer wall temperature: Significantly lower than uninsulated or thinly insulated equipment
• Energy saving effect: Heating energy consumption reduced by approximately 20-30%
• Temperature stability: Reduced temperature fluctuations, higher precision
