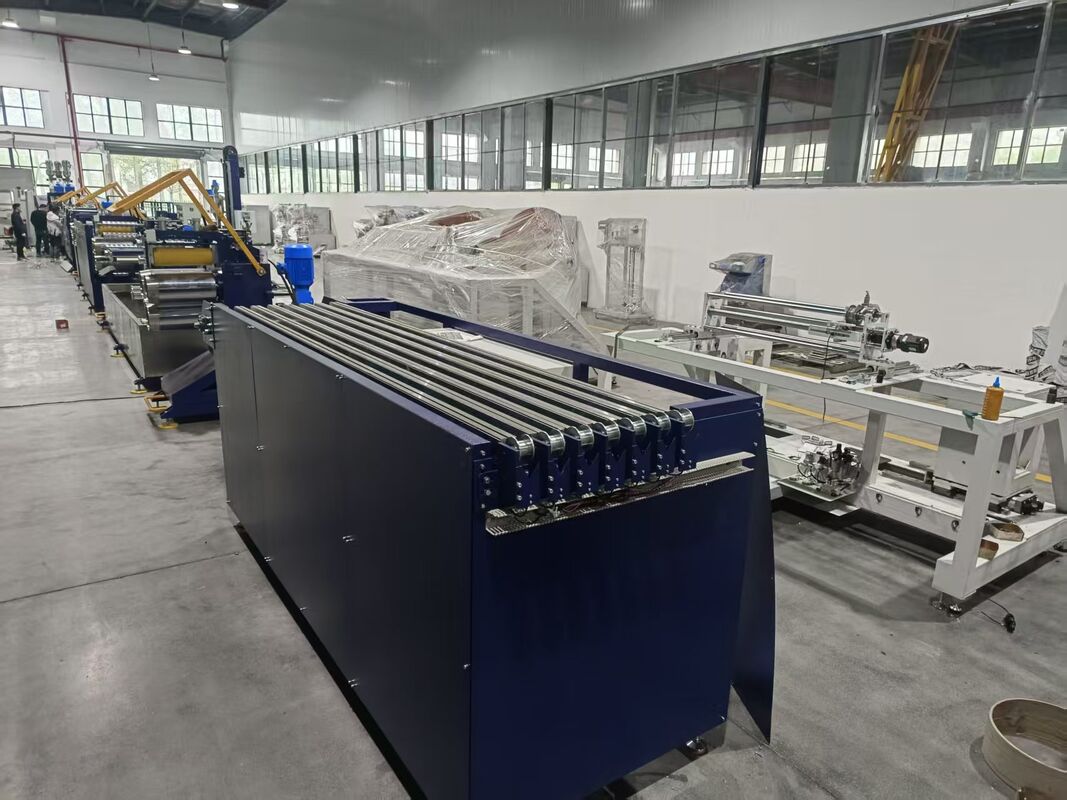

200-Meter Accumulator for Smooth Continuous Winding – PP Strapping Line

Large Image : 200-Meter Accumulator for Smooth Continuous Winding – PP Strapping Line

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI
Model Number:	CQ-SPP120-6

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	10SETS

Contact Now

200-Meter Accumulator for Smooth Continuous Winding – PP Strapping Line

Description

Storage Capacity:	200 Meters	Dimensions:	3.4×1.1×1.3m
Drive Power:	3.8KW	Control Method:	Linked Automatic
Applicable Width:	5-19mm	Function:	Roll Change Buffering
Core Value:	Continuous Non-stop Winding
Highlight:	200-meter accumulator for PP strapping band , continuous non-stop winding tape storage , linked automatic control strapping production

200-Meter Accumulator for Smooth Continuous Winding – PP Strapping Line

Product Introduction

During automatic winder roll changes, the winding shaft must briefly stop to unload finished rolls and load empty paper cores. Without an accumulator, tape would accumulate or break during this process. Our 200-meter accumulator automatically stores online tape during roll changes and releases it afterward, maintaining continuous production without frequent line stoppages.

Main Specifications

Accumulator dimensions: L3.4m * W1.1m * H1.3m
Storage capacity: 200 meters
Motor power: 3.8KW (speed adjustable)
Control method: Linked with winder, automatic storage/release
Applicable tape width: 5-19mm

Technical Parameters

Item	Parameter
Dimensions	L3.4m * W1.1m * H1.3m
Storage capacity	200 meters
Drive motor power	3.8 KW
Speed adjustment	Adjustable (matched to line speed)
Control linkage	Signal exchange with winder PLC
Applicable width	5 - 19 mm

Customer Questions & Answers

How long a roll change time does 200 meters of storage support?

At a line speed of 200 m/min, 200 meters of storage supports about 1 minute of roll change. Actual roll change (unloading, loading core, restart) by a skilled operator takes about 30 seconds, providing ample margin.

How does the accumulator prevent tape tangling or slipping?

The accumulator features multiple parallel guide rollers and separating combs with independent tape paths. The motor-driven roller speed is adjustable to maintain moderate tension, preventing slack and tangling.

Does the accumulator affect tape quality?

No. The tape remains in a free-hanging or light-contact state within the accumulator, with no additional friction or stretching. The guide rollers have smooth surfaces that do not damage the tape surface.
