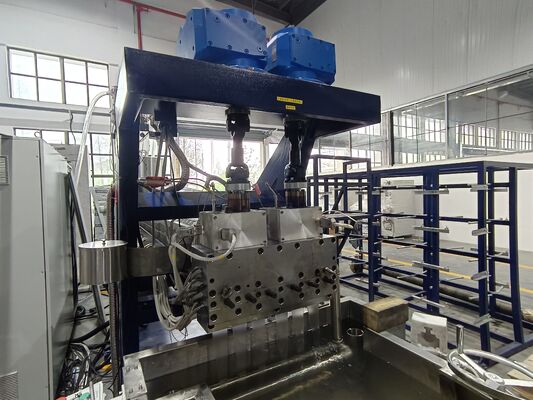

High-Capacity 240 kg/h Output PP Strapping Extrusion Line with φ120mm Screw and 55KW Motor

High-Capacity 240 kg/h Output PP Strapping Extrusion Line with φ120mm Screw and 55KW Motor
High-Capacity 240 kg/h Output PP Strapping Extrusion Line with φ120mm Screw and 55KW Motor

Large Image :  High-Capacity 240 kg/h Output PP Strapping Extrusion Line with φ120mm Screw and 55KW Motor

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQ-SPP120-6
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 10SETS
Contact Now

High-Capacity 240 kg/h Output PP Strapping Extrusion Line with φ120mm Screw and 55KW Motor

Description
Output Capacity: 240 Kg/h Screw Spec: φ120mm
Main Motor: 55KW Line Speed: 200 M/min
Material: 38CrMoAlA Application Scenario: Large-scale Production
Core Value: High Throughput

High-Capacity 1-out-6 PP Strapping Extrusion Line with 240 kg/h Output
Product Introduction

This production line is built around a core advantage of 240 kg/h extrusion capacity, specifically designed for large-scale PP strapping production. Equipped with a φ120mm large-diameter screw, 30:1 L/D ratio, and a 55KW high-efficiency main motor, it achieves extremely high output per unit time while ensuring plasticization quality. Combined with a maximum line speed of 200 m/min, it meets the demands of high-volume, continuous production, significantly enhancing plant capacity and market responsiveness.

Main Specifications
  • Maximum Output: 220-240 kg/h
  • Screw Diameter: φ120mm
  • L/D Ratio: 30:1
  • Main Motor Power: 55KW
  • Line Speed: 0-200 m/min
  • Total Installed Power: Approx. 235KW
Technical Parameters
Item Parameter
Maximum Output 220-240 kg/h
Screw Specification φ120mm, L/D=30:1
Screw Material 38CrMoAlA Alloy Steel
Surface Hardness HRC 58-60
Main Motor Power 55KW
Line Speed 0-200 m/min
Total Installed Power 235KW
Customer Questions & Answers
Under what conditions is the 240 kg/h output measured?
This data is measured using standard PP material (MFI 3-5), producing 12mm wide, 0.6mm thick strapping at a screw speed of approx. 85 rpm and line speed of 180 m/min. Actual output may vary with product specifications, raw material properties, and process settings, but the equipment has the hardware capability to deliver this high output.
Can the cooling system keep up with such high output?
We have configured a dual-stage cooling water tank system totaling 9 meters in length (first tank 3.5m + secondary tank 5.5m), with a circulating water flow of about 5 tons/hour and an adjustable water temperature range (10-25°C). The ample cooling capacity ensures complete product setting without deformation risk even at high output.
What are the electrical requirements for a high-output line?
Total installed power is about 235KW, requiring a 380V±10% 50HZ three-phase five-wire power supply. We recommend a dedicated distribution cabinet and a transformer of adequate capacity (≥300KVA). We will provide a detailed electrical load list for your power planning.
