Eco Friendly Cooling System PP Strap Band Extrusion Line With Low Temperature Circulating Water

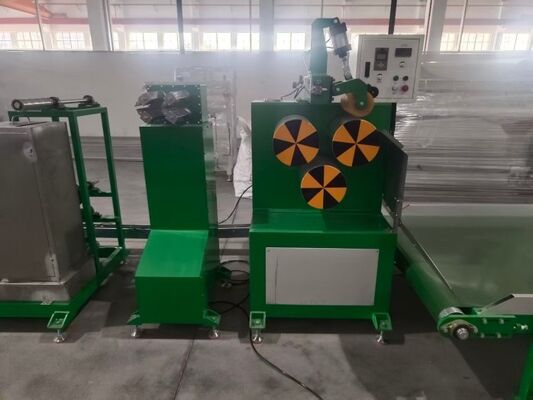

Large Image : Eco Friendly Cooling System PP Strap Band Extrusion Line With Low Temperature Circulating Water

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	100SETS

Contact Now

Eco Friendly Cooling System PP Strap Band Extrusion Line With Low Temperature Circulating Water

Description

System Type:	Circulating Water System	Core Requirement:	Low Temperature (≤22°C Inlet)
Flow Rate:	~5 T/h	Material:	Stainless Steel
Control Function:	Adjustable & Monitored Temperature	Environmental:	Water-Saving
Process Value:	Stabilizes Product Quality
Highlight:	PP strap band extrusion line , PP Strapping Band Belt Making Machine , PP Strapping Band Belt Extrusion Machine

Eco-Friendly Cooling System with Low-Temperature Circulating Water

An efficient and stable cooling system is essential for continuous production line operation and product setting. This closed-loop circulating water system features large-capacity stainless steel water tanks and high-pressure circulating water pumps, ensuring cooling water continuously removes heat at a flow rate of 5 tons per hour. The system requires inlet water temperature ≤22°C and regulates working water temperature within 10-25°C via temperature control, significantly reducing production water consumption while maintaining constant low-temperature cooling conditions for optimal product crystallization and dimensional stability.

Main Specifications

System Type: Closed-loop low-temperature circulating water cooling
Water Temperature: Inlet ≤22°C, working temperature 10-25°C adjustable
Water Flow Rate: Approximately 5 T/h
Material: 304 stainless steel main tanks
Advantages: Water-saving and eco-friendly, uniform stable cooling, enhanced product quality

Technical Parameters

Item	Parameter
Total Tank Length	Primary 3.0m + Secondary 5.5m = 8.5m
Tank Material	304 Stainless Steel (Plate Thickness 2.5/2.0mm)
Cooling Water Flow Rate	~5 T/h
Inlet Water Temp. Requirement	≤ 22°C
Operating Temperature Range	10 - 25°C (adjustable and monitored)
Water Pump Configuration	High-pressure circulating water pump(s)
Water Level Control	Automatic water replenishment function

Frequently Asked Questions

Does the circulating water system require additional equipment like a chiller or cooling tower?

Yes. The production line provides circulation and temperature control but cannot actively lower water temperature. To guarantee inlet temperature ≤22°C and achieve the 10-25°C regulation range, customers need to configure corresponding cooling towers (heat dissipation via evaporation) or industrial chillers (forced refrigeration) based on local climate and production capacity. We provide detailed interface requirements and heat load data for equipment selection.

Will water quality deteriorate with long-term循环 use? How is it maintained?

Yes, water evaporates, minerals may concentrate, and algae may grow. We recommend: 1) Regularly testing and adjusting water pH and hardness; 2) Adding appropriate corrosion inhibitors and biocides; 3) Using the drain outlet at the system bottom for periodic排污 and fresh water replenishment. Proper water treatment protects equipment piping and ensures cooling efficiency.

How does cooling water temperature specifically affect the product?

Cooling water temperature directly affects the cooling crystallization rate and crystallinity of PP. Excessively low water temperature may cause overly rapid cooling, high internal stress, and brittle straps. Excessively high water temperature leads to insufficient cooling, poor strap setting prone to deformation, and limited output. Maintaining water temperature stable within a suitable low range (e.g., 15-20°C) is key to ensuring products with good toughness, dimensional stability, and high production speed.
