Versatile PP Extrusion System for Widths 3–15mm Thickness 0.3–1.0mm

Versatile PP Extrusion System for Widths 3–15mm Thickness 0.3–1.0mm
Versatile PP Extrusion System for Widths 3–15mm Thickness 0.3–1.0mm

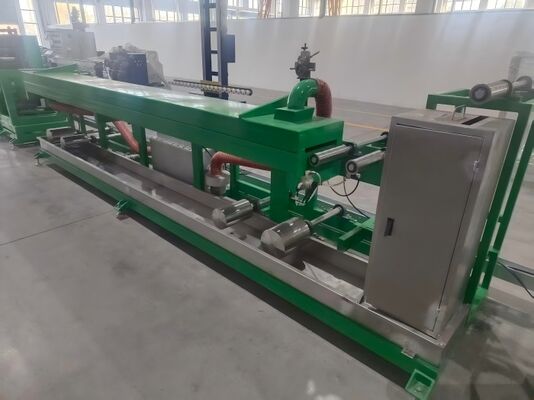

Large Image :  Versatile PP Extrusion System for Widths 3–15mm Thickness 0.3–1.0mm

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 100SETS
Contact Now

Versatile PP Extrusion System for Widths 3–15mm Thickness 0.3–1.0mm

Description
Width Range: 3-15mm Thickness Range: 0.3-1.0mm
Die Configuration: Die Configuration: Connection Method: Quick-Release Flange
Drawing Range: 1.5-12 Times Product Types: Strapping/Decorative Strips/Flat Yarn
Equipment Feature: High Flexibility
Highlight:

PP extrusion system for strapping bands

,

versatile PP strapping production line

,

PP extrusion machine 3-15mm width

Versatile PP Extrusion System for Widths 3–15mm & Thickness 0.3–1.0mm
Product Introduction

This production line offers exceptional flexibility and wide adaptability, capable of manufacturing various PP flat products including strapping, decorative strips, and flat yarn. The system accommodates widths from 3mm to 15mm and thicknesses from 0.3mm to 1.0mm. With quick-change custom dies and adjustable process parameters, you can efficiently switch between different product specifications to meet diverse market demands and maximize equipment ROI.

Main Specifications
  • Applicable Range: Width 3-15 mm, Thickness 0.3-1.0 mm
  • Key Support: Quickly interchangeable custom dies
  • Process Support: Adjustable draw ratio, temperature, speed parameters
  • Applicable Products: PP strapping, decorative strips, flat yarn, and similar flat products
Technical Parameters
Item Parameter
Product Width Range 3 - 15 mm
Product Thickness Range 0.3 - 1.0 mm
Standard Die Set 1 set (basic specification)
Optional Custom Dies Up to 2 sets (customer-provided specifications)
Die Connection Method Quick-Release Flange
Draw Ratio Adjustment Range 1.5 - 12 times
Frequently Asked Questions
How long does it take to switch from producing one specification to another? Is the process complicated?
Switch time primarily depends on die change and heating time. Thanks to the quick-release flange connection, changing the die head is relatively fast. Typically, with experienced operation, a major mechanical specification switch can be completed within 2-4 hours. Process parameter adjustments (temperature, speed, draw ratio) can be done quickly on the touch screen interface.
Can this equipment produce round or other shaped PP products?
This production line is optimized for producing flat PP products (strapping, flat yarn). Its cooling, stretching, and haul-off systems are specifically designed for flat products. Producing round cross-sections or other complex shapes would require redesigning the die head, cooling tank, and potentially subsequent processing equipment, which is not included in this standard configuration.
Do you provide custom die services? What about cost and lead time?
Yes, we provide professional custom die services. The standard quotation includes 1 set of basic die. You can order up to 2 additional custom die sets as needed. Custom dies require you to provide clear final product specification drawings or samples. Cost and lead time depend on die complexity and materials, which are typically confirmed separately after contract signing.

Tag:

synchronous PP strapping line,

PP strapping production line,

high productivity PP strapping machine
