Product Details:
|
| Fully Automatic Cycle: | Yes (includes Cutting, Wrapping, Flipping, Conveying) | Outer Film Wrapping: | Automatic |
|---|---|---|---|
| Coil Flip & Convey: | 90° Automatic Flip Onto Belt | Strap Width Range: | 5–19 Mm |
| Tension Control: | Spring Screw And Tension Arm Angle Regulation | Traverse Drive: | Servo Motor |
| Highlight: | PP strap automatic winding machine,inward-winding conveyor strap winder,fully automatic PP strap winder |
||

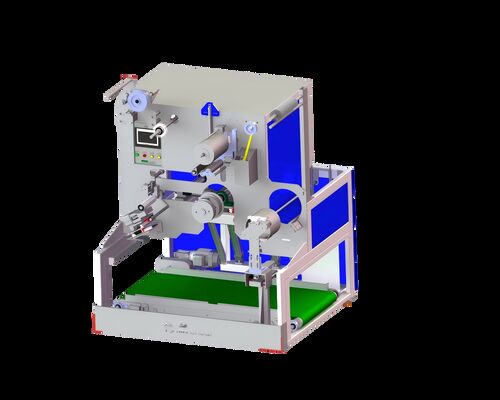

This fully automatic PP strap winder achieves a complete automatic cycle including winding, strap cutting, head clamping, outer-layer film wrapping, 90° coil flipping, and conveying to the discharge belt. A servo motor drives the traverse, with strap width (5-19 mm) set on the touchscreen.
After winding completes, the machine automatically stops, changes the paper tube, cuts the strap, clamps the tail, wraps the outer layer with film, flips the finished coil 90° onto the conveyor belt, returns to origin, and starts the next cycle - all without manual intervention.
The winding shaft is driven by a servo gear motor, with speed regulated by the tension arm angle and tension adjustable via a spring screw, effectively reducing coil curvature deformation. Measurement modes include length (meter) and weight.
| Parameter | Specification |
|---|---|
| Machine name | PP Strap Inward-Winding Conveyor-Type Fully Automatic Winding Machine |
| Strap type | PP strapping, width 5-19 mm |
| Traverse drive | Servo motor |
| Width setting | Touchscreen selection |
| Paper core required | Yes (paper tube) |
| Outer film wrapping | Automatic (after winding) |
| Automatic actions | Stop, tube change, strap cut, head clamp, film wrap, 90° flip, convey, return to origin |
| Winding shaft drive | Servo gear motor |
| Tension control | Tension arm angle (speed regulation) + spring screw (tension adjustment) |
| Unloading method | 90° flip onto conveyor belt |
| Measurement modes | Length (meter) or weight |
