8-19mm Width 500mm OD Automated PP Strap Winder

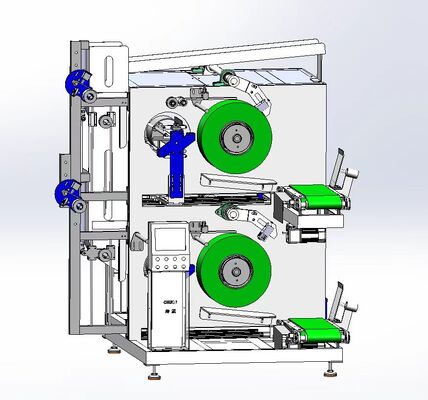

Large Image : 8-19mm Width 500mm OD Automated PP Strap Winder

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI
Model Number:	CQA819PD

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	USD/RMB
Packaging Details:	WOOD BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	600SETS

Contact Now

8-19mm Width 500mm OD Automated PP Strap Winder

Description

Strap Width Range:	8–19 Mm	Max Package Outer Diameter:	500 Mm
Mandrel Diameter:	203 Mm	Traverse Length Range:	50–200 Mm
Tension Control Type:	Dancer Constant Tension	Measurement Modes:	Weight, Length
Highlight:	Automated PP Strap Winder , PP Strap Winder CQA819PD , Industrial PP Strap Winder

8-19mm Width 500mm OD Automated PP Strap Winder

Product Introduction

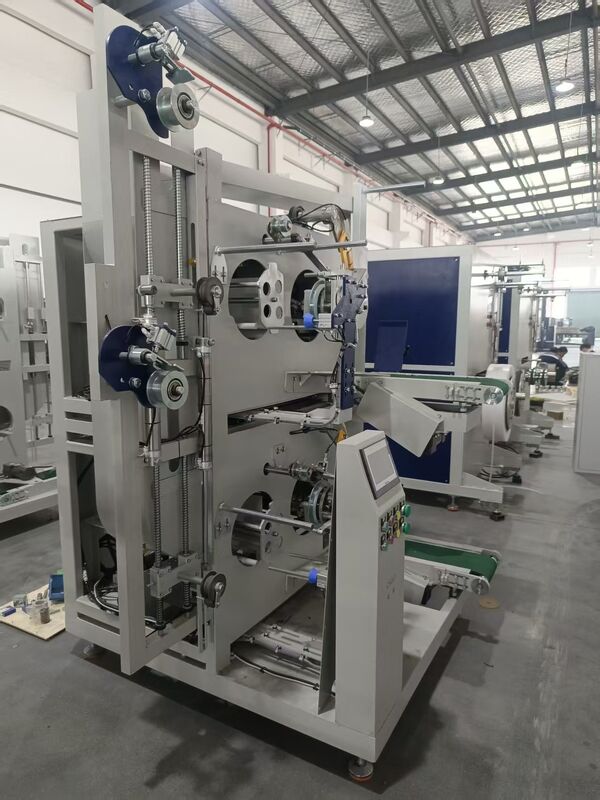

This fully automatic PP strap winder is designed for strap widths of 8-19 mm and a maximum package outer diameter of 500 mm. It can be connected directly to the extruder for parallel winding, reducing production line length. After manual threading, the machine runs fully automatically; the integrated transport system removes finished packages and feeds new winding tubes from the magazine - suitable for continuous operation.

Main Specifications

Strap width range: 8-19 mm
Maximum package outer diameter: 500 mm
Mandrel diameter: 203 mm
Traverse length: 50-200 mm (adjustable)
Winding speed: 50-300 m/min
Tension control: Dancer system (constant tension)
Measurement modes: weight / length

Technical Specifications

Parameter	Specification
Model	CQA819P
Strap width	8 - 19 mm
Max package outer diameter	500 mm
Mandrel diameter	203 mm
Traverse length	50 - 200 mm
Winding speed	50 - 300 m/min
Max pick-up speed	350 m/min
Tension control	Dancer system (constant tension)
Laying system	Electronic 2/3-point laying, minimal strap bend
Mandrel type	Pneumatic
Magazine	Sleeve magazine + bobbin deposit
Measurement modes	Weight / length

Frequently Asked Questions

What strap widths can this winder handle?

It can wind PP straps from 8 mm to 19 mm wide, covering common specifications depending on configuration.

What is the maximum package outer diameter?

The maximum package outer diameter is 500 mm, with a mandrel diameter of 203 mm.

Can the package width be adjusted?

Yes. The traverse length is infinitely adjustable from 50 mm to 200 mm to meet different customer requirements for coil width.

How is the 500 mm package automatically removed?

When the package reaches the set diameter, the integrated transport system automatically removes it from the line, while a new tube is fed from the magazine - all without stopping production.
