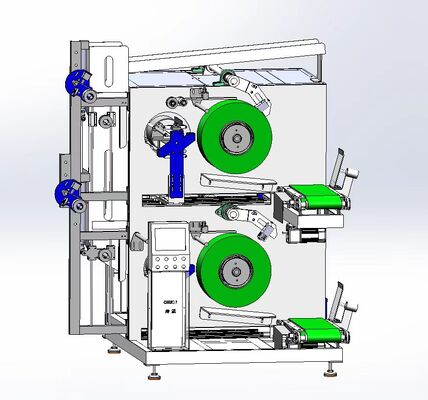

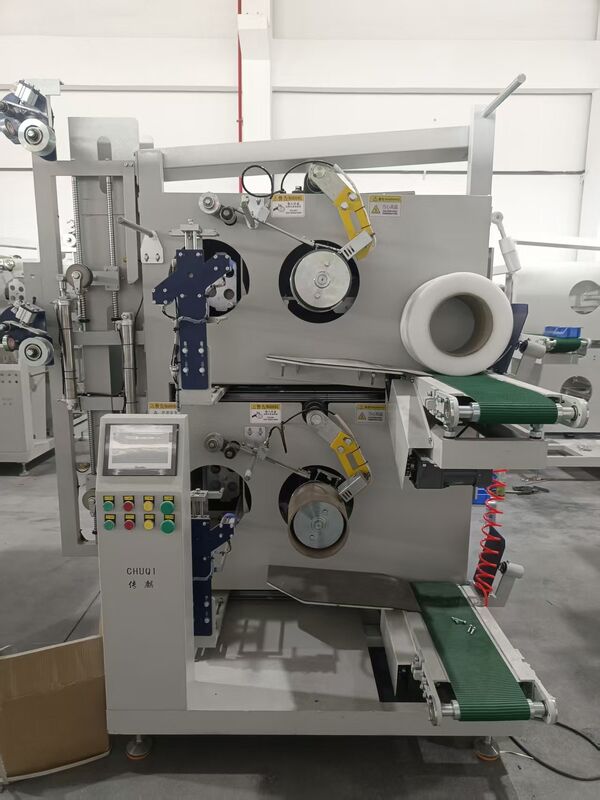

Direct Extruder Integration Automated PP Strap Winder

The CQA819PD fully automatic PP strap winder supports direct parallel winding from the extruder, eliminating the need for intermediate accumulator stands or buffer equipment. After cooling, the strap enters the winding station directly from the extruder exit, while the dancer constant tension system compensates for minor speed fluctuations between extrusion and winding. This direct integration not only simplifies line layout but also reduces the exposed strap length, lowering dust contamination and accidental stretching. The machine winds two 8-19 mm PP straps simultaneously, achieving efficient, compact extrusion-to-winding integrated production.

• Direct connection - Eliminates accumulator and buffer rollers, simplifies line.
• Speed adaptive - Dancer constant tension automatically compensates extrusion/winding speed differences.
• Two straps at once - One machine delivers double output without added complexity.
• Reduces contamination - Short exposed strap path lowers dust and oil pick‑up.
• Prevents stretching - Fewer rollers reduce accidental strap deformation.
• Easy installation - Place after extruder cooling section; no line foundation modification needed.
• Automation ready - Can communicate with extruder PLC for coordinated control.
