Product Details:
Place of Origin: China
Brand Name: CHUQI
Model Number: CQP-12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD/RMB
Packaging Details: FCL
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 60 sets

Environmentally Friendly Paper Strapping Production Line / Making Machine / Extrusion Line

Description
Strap Coil Inner Diameter: 200mm Application: Paper Strapping
Winding Head: 12 Units Or Customisable Strap Coil Outer Diameter: 400-600mm
Strap Width: 5-19mm Material: Paper
Strap Size: 5mm, 9mm, 12mm Raw Material: Paper
Highlight:

paper strapping making machine

,

paper strapping extrusion line

,

environmentally friendly paper strapping machine

Environmentally Friendly Paper Strapping Production Line / Making Machine / Extrusion Line
Environmentally Friendly Paper Strapping Production Line

This production line is designed to manufacture environmentally friendly paper strapping as a sustainable alternative to conventional plastic strapping. The system produces paper straps in sizes of 5mm, 9mm, 12mm, and 15mm.

Paper strapping provides an eco-friendly solution for sealing and bundling light packages and objects for short-term indoor storage. The straps can withstand loads between 25 and 55 kg and are available in 5mm, 9mm, and 12mm widths. The soft, smooth, and flexible material ensures easy processing and perfect adaptation to packaging shapes. User handling is safe with no risk of injury from sharp edges. The natural straps can be torn off by hand and are compatible with most semi-automatic and automatic strapping devices.

Main Components
  • Raw Material Storage Device - Stores and feeds paper material into the production process
  • Embossing and Slitting Unit - Creates texture and cuts paper to required widths
  • Printing Machine - Applies logos and identification marks to the strapping

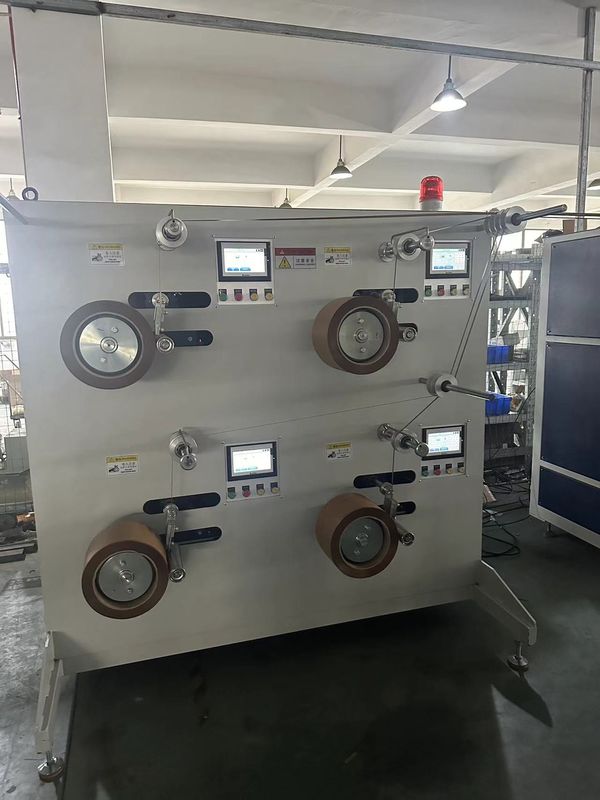

  • Winding Machine - Collects finished strapping into organized rolls
Key Features and Advantages
Precision Slitting
Japanese-made slitter knives ensure minimal tape error and consistent quality throughout production.
Advanced Printing Capability
The printing system can apply logos and markings simultaneously across all 12 tape lines.
Independent Winding Control
Each of the 12 winding heads features individual PLC control and dual servo motors for precise operation and reliability.
